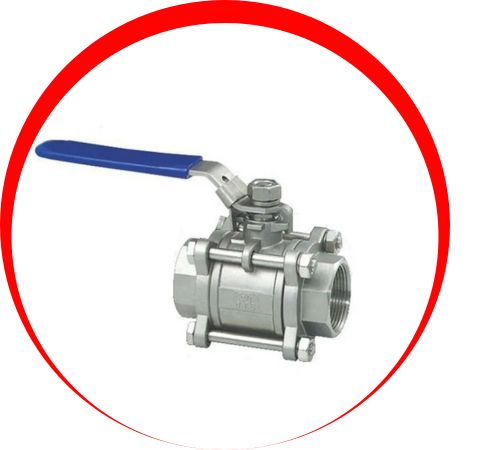

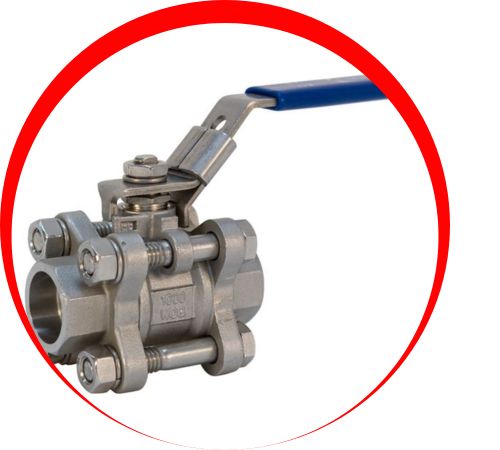

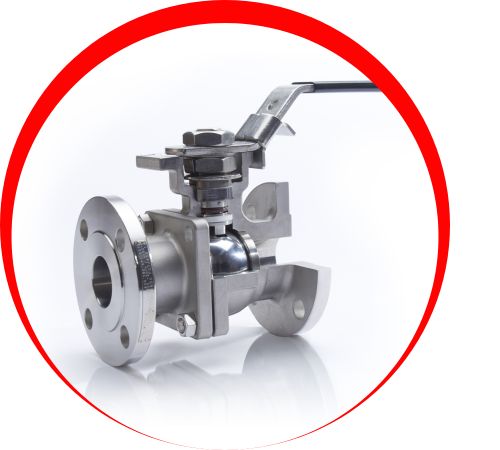

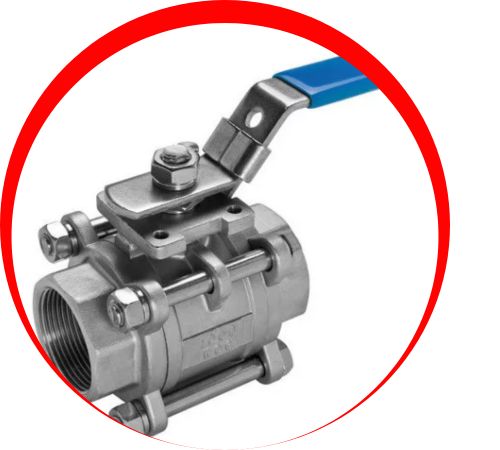

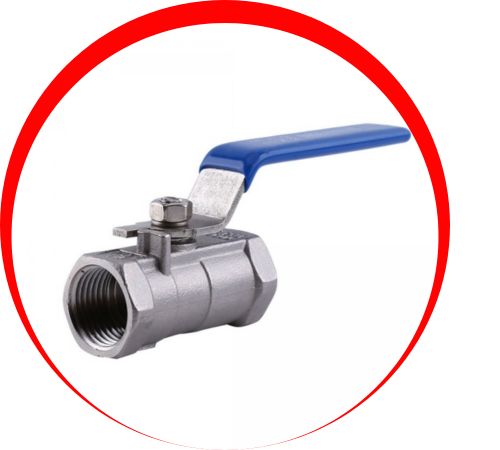

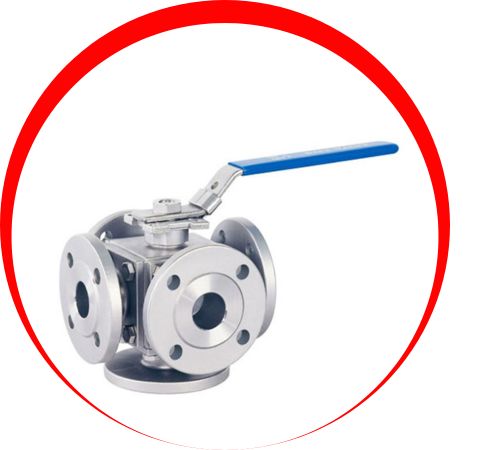

Wai Nickel Alloys stands out as a top-notch manufacturer and supplier located in Naypyidaw, Myanmar, specializing in high-quality Inconel Ball Valves that are designed to excel in harsh, corrosive, and high-temperature settings. These valves are crafted from a nickel-chromium superalloy, which offers remarkable resistance to oxidation, pitting, and stress-corrosion cracking. At Wai Nickel Alloys, you can expect precision engineering, leak-proof construction, and strict adherence to international quality standards. Their Inconel Ball Valves are a go-to choice in industries like chemical processing, marine, petrochemical, and power generation, where reliability, strength, and durability are absolutely essential.
The composition of Inconel Ball Valves includes over 70% nickel and 14–17% chromium, along with trace amounts of iron, molybdenum, niobium, and titanium. This unique blend ensures impressive mechanical strength (up to 850 MPa), outstanding corrosion resistance, and excellent oxidation resistance at temperatures reaching up to 1000°C. The alloy retains its toughness and dimensional stability even under high pressure and thermal stress. Additionally, Inconel Ball Valves are resistant to chloride-induced stress-corrosion cracking, scaling, and carburization, guaranteeing long-lasting performance in the toughest conditions.
| VALVE SIZE | 6 MM TO 50 MM or 1/8″ TO 2″ |
| SPECIFICATION | ASME B16.34, BS 5352, ASME SA494/ASTM A494 API 602, ASME B16.5, ASME B1.20.1, ASME B16.25, ASME B16.10, ASME B16.11, DIN3352 |
| CONNECTION | TUBE END, WELD NIPPLE,THREADED, SOCKET WELD, BUTT WELD, FLANGED, SAE |
| THREAD | METRIC, BSPP, NPT, JIC, BSPT, UNF |
| FUNCTION | 4 WAY, 3 WAY, 2 WAY, 5 WAY, |
| SEAL RING MATERIAL | PVDF, PTFE, PEEK, DELRIN, GRAPHITE |
| PRESSURE RATING | 15000 PSI, 3000 PSI, 1500 PSI, 10000 PSI, 6000 PSI, 20000 PSI |
| GRADE | INCONEL 625, 600, 800, 718, 825, ALLOY 20 |
| EQUIVALENT BRANDS | OLIVER VALVES, PARKER, SWAGELOK, HAMLET, DK-LOK, HOKE |
| MEDIA | AIR, HYDRAULIC OIL, GAS, WATER, HOT WATER , STEAM, SEA WATER , COLD WATER , CHEMICAL |
| STANDARD | DIN , ISO , API , ANSI , AWWA , ASME , MSS , |
| BODY TYPE | BAR STOCK |
| MEDIA TEMPERATURE | (-120* C – 500*C ) AS PER PRESSURE RANGE |
| PACKING DETAILS | WOODEN PALLET, BOX PACKING |
| Grade | Mn | Al-Ti | C | Si | S | Fe | Cr2 | Ni | |
| Inconel Ball Valve | min. | – | – | – | – | – | – | 20.0 | 58.0 |
| max. | 0.50 | 0.40 | 0.10 | 0.50 | 0.015 | 5.0 | 23.0 | – | |
| Grade | Strength of Yield 0.2% Proof (MPa) minimum | Elongation (% in 50mm) minimum | Strength of Tensile (MPa) minimum | Hardness | |
| Brinell (HB) maximum | Rockwell B (HR B) maximum | ||||
| Inconel Ball Valve | Psi – 75,000 , MPa – 517 | 42.5 | Psi – 1,35,000 , MPa -930 | – | – |
At Wai Nickel Alloys, we take pride in being the largest supplier, exporter, and manufacturer of Inconel Ball Valve in Naypyidaw, Myanmar, providing cutting-edge solutions for all your piping needs. Our state-of-the-art production plants are strategically located in the Myanmar, allowing us to maintain a vast inventory of over 16,000 tons of premium-quality materials readily available in stock. We are dedicated to delivering superior products and services, ensuring reliability and excellence for our global clientele.
Contact us to get a quick quote for your requirement.
These valves are commonly found in industries that deal with aggressive chemicals, high-pressure gases, and extreme temperatures. Typical applications include chemical plants, offshore drilling rigs, heat exchangers, power generation systems, and marine environments. They are also utilized in gas turbines, refineries, and high-performance process systems where corrosion and oxidation resistance are critical. With their combination of strength, durability, and sealing efficiency, Inconel Ball Valves are the preferred choice for essential flow control applications in demanding industrial and environmental settings.
