Wai Nickel Alloys is a leading manufacturer and supplier based in Naypyidaw, Myanmar, and is renowned for its exceptional range of high-quality nickel alloys. Specializing in Monel sheets and plates, we meet diverse industrial needs with precision and reliability. Our Monel products are distinguished by their superior corrosion resistance, durability, and performance, making them ideal for demanding applications in various sectors. With a commitment to excellence and customer satisfaction, we are a trusted partner in the nickel alloy industry.

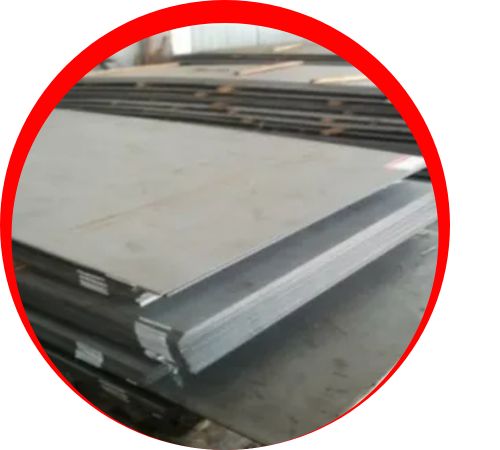

Wai Nickel Alloys, based in Naypyidaw, Myanmar, has built a solid reputation as a manufacturer and supplier of **Monel Sheet and Plates**. These products are celebrated for their outstanding corrosion resistance, impressive mechanical strength, and durability. The company takes pride in offering high-quality Monel sheets and plates that are designed to meet international standards and endure tough industrial conditions. With a commitment to precision and longevity, Wai Nickel Alloys supplies products that find their place in marine, chemical, petrochemical, and power generation sectors.
Specifications :ASTM B127, ASME SB127, AMS 4544, QQ-N-281, DIN 17750, BS 3072NA1, BS 3076NA13
Standards : ASTM, ASME and API
Size : 1000 mm x 2000 mm, 1220 mm x 2440 mm, 1500 mm x 3000 mm, 2000 mm x 2000 mm, 2000 mm x 4000 mm
Thickness : 0.1mm to 12 mm Thk
Length : 12500 mm
Form : Coils, Foils, Shim Sheet, Perforated Sheet, Chequered Plate, Strip, Flats, Blank (Circle), Ring (Flange) & Angle, Channel, Tray Etc.
Hardness : Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc.
Plate, Sheet, and Strip : BS3072NA18 (Sheet and Plate), BS3073NA18 (Strip), QQ-N-286 (Plate, Sheet and Strip), DIN 17750 (Plate, Sheet and Strip), ISO 6208 (Plate, Sheet and Strip)
Grade : Monel 400 (UNS No. N04400), Monel 500 (UNS No. N05500)
| Grade | Ni | Fe | C | Mn | Si | Cu | Al | S |
|---|---|---|---|---|---|---|---|---|
| Monel 400 | 63.0 min | 1.0 – 2.5 | 0.3 max | 2.0 max | 0.5 max | 28.0 – 34.0 | 0.50 max | 0.02 max |
| Monel K500 | 63.0 min | 05 – 2 | 0.25 max | 1.5 max | 0.5 max | 27.0 – 33.0 | 2.3 – 3.15 | 0.010 max |
**Monel Sheet and Plates** are mainly made up of nickel (around 63%) and copper (roughly 28–34%), along with trace amounts of iron, manganese, and silicon. This unique blend gives them remarkable resistance to seawater, acids, alkalis, and various corrosive agents. Monel is known for its high tensile strength, good ductility, and excellent thermal conductivity. It maintains its toughness across a broad temperature spectrum and is resistant to pitting, oxidation, and stress-corrosion cracking, making it suitable for both high-temperature and sub-zero applications.
Contact us to get a quick quote for your requirement.
You’ll find **Monel Sheet and Plates** widely utilized in marine engineering, chemical processing, oil and gas refineries, and desalination facilities. They are perfect for constructing heat exchangers, pressure vessels, condensers, and evaporators. Their ability to handle severe corrosion and high mechanical stress makes them a go-to choice for challenging operating environments. With great weldability, formability, and strength, Monel Sheet and Plates ensure reliable, long-lasting performance in demanding industrial settings.
