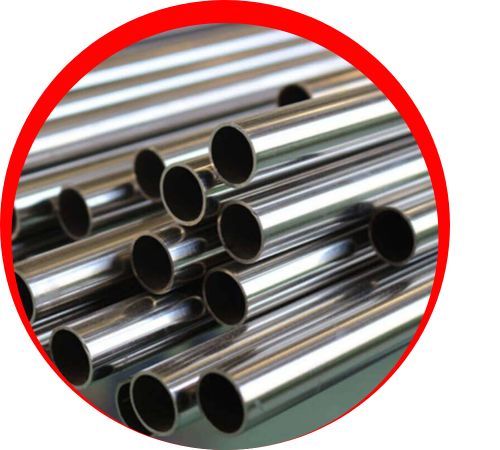

Wai Nickel Alloys is a reputable manufacturer and supplier located in Naypyidaw, Myanmar, with a focus on crafting high-performance Monel Pipes. These pipes are celebrated for their remarkable corrosion resistance, strength, and durability, making them perfect for tough industrial settings. Wai Nickel Alloys produces Monel Pipes in a variety of sizes and specifications that adhere to international standards, guaranteeing excellent dimensional accuracy and top-notch quality. Thanks to their impressive mechanical properties and resistance to seawater, acids, and alkalis, Monel Pipes from Wai Nickel Alloys find extensive use in marine, chemical, and petrochemical industries.
These Monel Pipes are primarily made up of about 63% nickel and 28–34% copper, along with trace amounts of iron, manganese, silicon, and carbon. This nickel-copper alloy is known for its outstanding resistance to corrosion in seawater and in both acidic and alkaline environments. The material boasts a tensile strength ranging from 480 to 620 MPa and high toughness, retaining its strength even in sub-zero temperatures. It also offers good thermal conductivity, a melting point of around 1300°C, and excellent resistance to pitting and stress-corrosion cracking, making it suitable for both high-temperature and cryogenic applications.
|
Dimensions |
: |
ASTM, ASME and API |
|
Grade |
: |
Monel 400 (UNS No. N04400), Monel 500 (UNS No. N05500) |
|

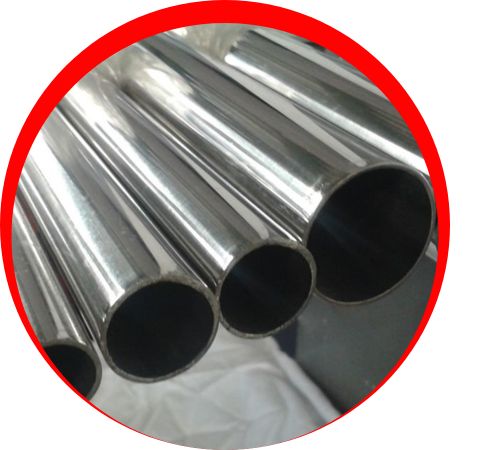

Monel Seamless Pipes |
: |
ASTM B165, ASME SB165 |
|

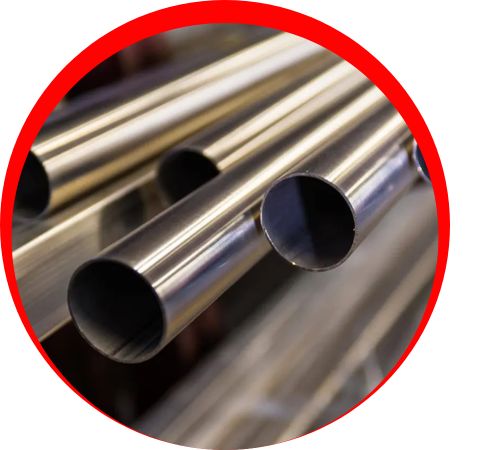

Monel Welded Pipes |
: |
ASTM B725 / ASME SB725 |
|
Size |
: |
1/8″NB TO 30″NB IN |
|
Specialized in |
: |
Large Diameter Size |
|
Schedule |
: |
SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS |
|
Form |
: |
Round, Hydraulic Etc |
|
Type |
: |

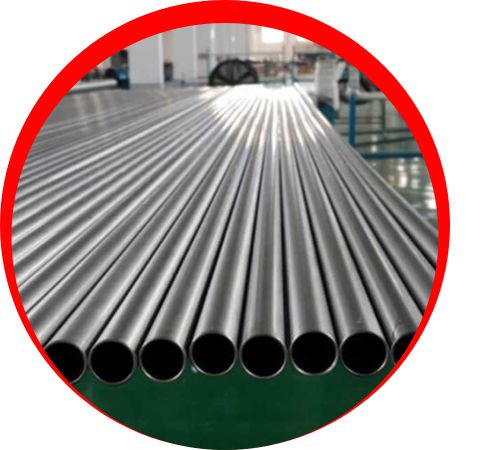

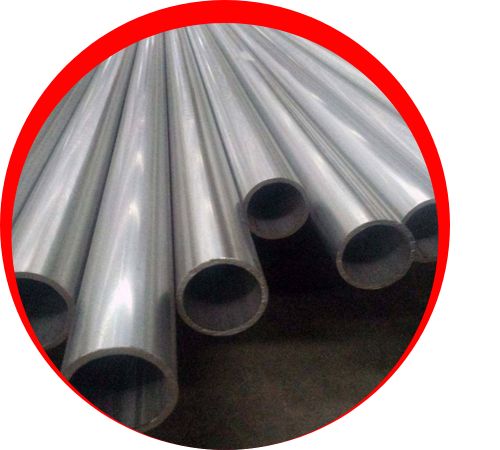

Seamless / ERW / EFW / Welded / Fabricated / CDw |
|
Length |
: |
Single Random, Double Random & Cut Length. |
|
End |
: |
Plain End, Beveled End, Threaded |
| C | Mn | Si | S | Cu | Fe | Ni | Cr | |
| Monel | 0.30 max | 2.00 max | 0.50 max | 0.24max | 28.0-34.0 | 2.50 max | 63.00 min | – |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation | |
| Monel | 8.8 g/cm3 | 1350 °C (2460 °F) | Psi – 80,000 , MPa – 550 | Psi – 35,000 , MPa – 240 | 40 % |
At Wai Nickel Alloys, we take pride in being the largest supplier, exporter, and manufacturer of Monel Pipes in Naypyidaw, Myanmar, providing cutting-edge solutions for all your piping needs. Our state-of-the-art production plants are strategically located in the Myanmar, allowing us to maintain a vast inventory of over 16,000 tons of premium-quality materials readily available in stock. We are dedicated to delivering superior products and services, ensuring reliability and excellence for our global clientele.
Contact us to get a quick quote for your requirement.
Monel Pipes are widely utilized in industries where strength and corrosion resistance are crucial. They are particularly well-suited for marine applications, including seawater systems, pump shafts, and condenser tubes. In the chemical and petrochemical sectors, they are used in processing equipment, heat exchangers, and piping systems that manage acidic or alkaline fluids. Furthermore, Monel Pipes are essential in oil and gas refineries, power generation plants, and aerospace systems due to their durability, reliability, and ability to endure extreme operating conditions.
