Home > Waspalloy Sheet and Plates
Wai Nickel Alloys, a well-respected manufacturer and supplier located in Naypyidaw, Myanmar, specializes in high-performance Waspalloy Sheets and Plates designed for exceptional strength, heat resistance, and corrosion protection. These nickel-based superalloy sheets and plates are crafted using cutting-edge metallurgical techniques to guarantee a superior surface finish, precise dimensions, and robust mechanical integrity. Renowned for their outstanding performance in high-temperature environments, Waspalloy Sheets and Plates are perfect for demanding applications in aerospace, gas turbines, and power generation. With remarkable resistance to oxidation and thermal fatigue, Wai Nickel Alloys provides products that adhere to the highest global standards for durability and performance.
Waspalloy Sheets and Plates are primarily composed of Nickel (58%), Chromium (19–21%), Cobalt (12–13%), Molybdenum (4–5%), and Titanium (2.5–3%), along with trace amounts of Aluminum and Iron. This alloy boasts a tensile strength of 1300 MPa, a yield strength of around 1000 MPa, and impressive creep and oxidation resistance up to 870°C (1600°F). It maintains excellent stability and hardness even under prolonged thermal exposure. Additionally, these sheets and plates exhibit remarkable fatigue strength, ductility, and corrosion resistance, making them ideal for both structural and thermal applications in challenging service conditions.
| Specification : | AMS, AMS, API |

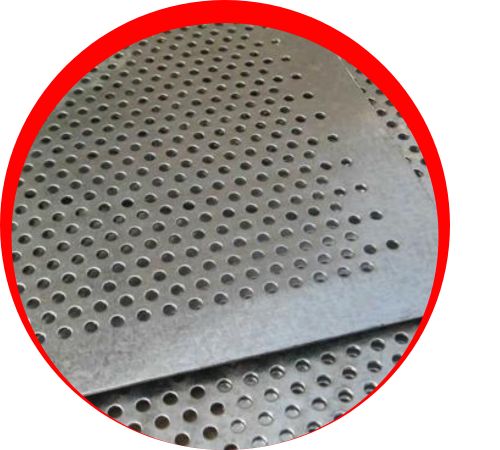

| Specialize sheets : | Shim, Perforated Sheet, B. Q. Profile. |
| Size : | 0.5 MM TO 200 MM THICK IN 1000 MM TO 2500 MM WIDTH & 2500 MM TO 12500 MM LENGTH |
| Finish : | Cold rolled sheet (CR), 2D, Hot rolled plate (HR), 2B, BA NO(8), SATIN (Met with Plastic Coated) |
| Hardness : | Quarter Hard, Soft, Hard, Half Hard, Spring Hard etc. |
| Grade : | Waspaloy (UNS-N07001) |
| STANDARD | UNS | Material No |
| Waspaloy | N07001 | 2.4654 |
| Waspaloy | Cr | Ni | Mo | Co | Al | Ti | B | C | Zr | Fe | Mn | Si | P | S | Cu |
| MIN | 18.00 | — | 3.50 | 12.00 | 1.20 | 2.75 | 0.003 | 0.02 | 0.02 | — | — | — | — | — | — |
| MAX | 21.00 | Balance | 5.00 | 15.00 | 1.60 | 3.25 | 0.01 | 0.10 | 0.08 | 2.00 | 0.10 | 0.15 | 0.015 | 0.015 | 0.10 |
Waspaloy plates and sheets are widely used in applications that call for extraordinary resistance to corrosion and heat. They are widely used in the aerospace industry to manufacture engine shafts, compressor blades, and turbine discs. They are utilised in high-temperature fasteners, exhaust systems, and gas turbines in the power generation industry. Waspaloy is also appropriate for use in the nuclear, marine, and chemical processing industries due to its exceptional resistance to oxidation. Because of its exceptional resilience to heat stress, the alloy is a material of choice for critical components that must function in harsh, high-temperature environments.
Contact us to get a quick quote for your requirement.
Waspalloy Sheets and Plates find extensive use in industries that demand materials capable of maintaining strength and integrity at elevated temperatures. In the aerospace field, they are employed for turbine blades, rings, casings, and engine components that endure extreme heat and pressure. In the power generation sector, they are utilized in combustion chambers, gas turbines, and exhaust systems. The chemical and petrochemical industries also rely on them for reactors and high-temperature processing equipment. Thanks to their excellent oxidation and corrosion resistance, Waspalloy Sheets and Plates are a go-to choice for various demanding applications.
