Based in the heart of Naypyidaw, Wai Nickel Alloys has built a reputation as a trusted source for high-performance materials, specializing in the supply and manufacture of Incoloy 825 forgings. We understand that demanding industrial applications require components that are not just strong, but intelligently engineered to resist harsh environments. Our commitment is to provide forgings that offer exceptional reliability, ensuring your critical operations benefit from the superior qualities of this versatile nickel-iron-chromium alloy, all supported by our local expertise and dedicated service.
The strength of Incoloy 825 forgings comes from a carefully balanced composition, primarily nickel, chromium, and iron, with strategic additions of molybdenum and copper. This blend gives the material its remarkable mechanical integrity, including high tensile strength and excellent yield strength, allowing it to perform under significant stress. Importantly, it maintains good ductility and toughness even after the forging process, meaning components can withstand impact and fabrication without compromising their structural integrity, making them a dependable choice for heavy-duty service.
| Specifications | ASTM B564, ASME SB564 |
|---|---|
| Standard | DIN, ASTM, BS and all International Standards |

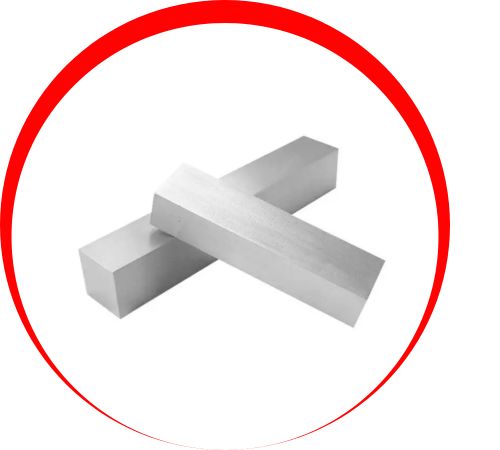

| Flat bar blocks | up to 27″ width and 15,000 lbs |

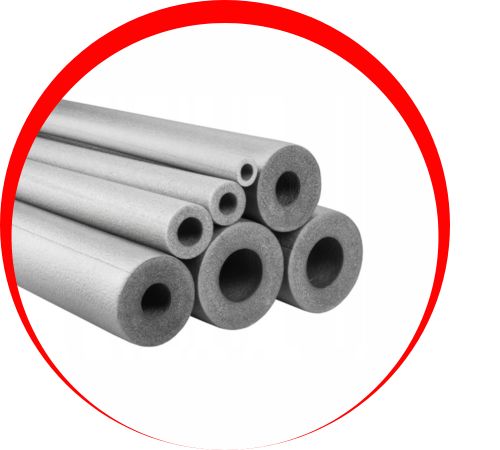

| Cylinders and sleeves | up to 50″ maximum O.D. and 65″ maximum length |

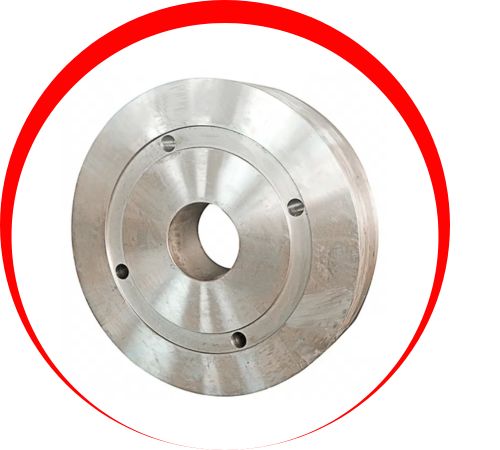

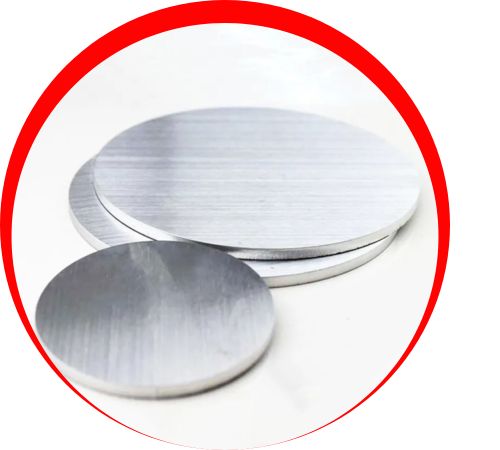

| Discs and hubs | up to 50″ diameter and 20,000 lbs |

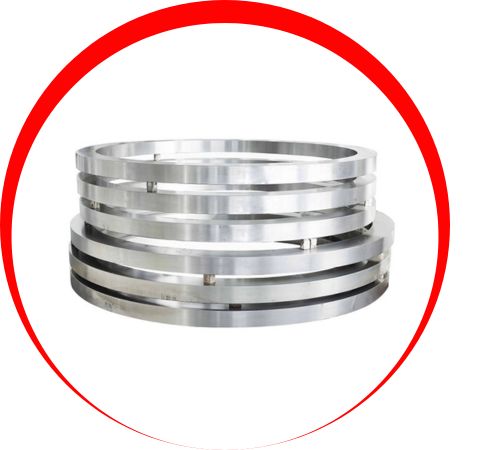

| Rolled, hand forged or mandrel forged rings | up to 84″ maximum O.D. and 40″ maximum length |

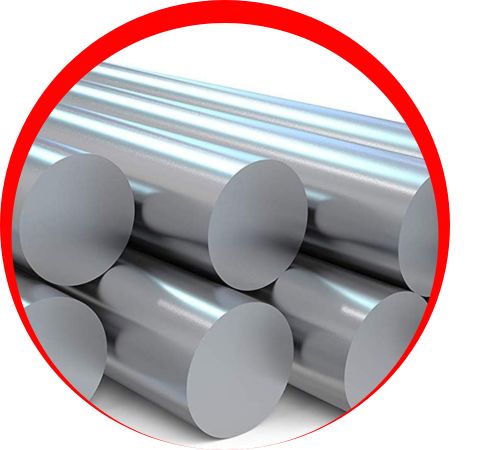

| Rounds, shafts and step shafts | up to 144″ maximum length and 20,000 lbs |
| Forging Types | Impression Die Forging, Open Die Forging, Seamless Rolled Forging, Hot Forging, Cold Forging, Open die hammer forging, Impression die drop forging, Closed Die Forging, Press Forging, Upset Forging, Compression Forging, Swaging, Rotary Forging, Roll forging. |
| Grade | C | Mn | Si | S | Cu | Fe | Ni | Cr | Al | Ti |
| Incoloy 825 | 0.05 max | 1.00 max | 0.5 max | 0.03 max | 1.50 – 3.00 | 22.00 min | 38.00 – 46.00 | 19.50 – 23.50 | 0.02 max | 0.06 – 1.20 |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation | |
| Incoloy 825 | 8.14 g/cm3 | 1400 °C (2550 °F) | Psi – 80,000 , MPa – 550 | Psi – 32,000 , MPa – 220 | 30 % |
At Wai Nickel Alloys, we take pride in being the largest supplier, exporter, and manufacturer of Incoloy 825 Forgings in Naypyidaw, Myanmar, providing cutting-edge solutions for all your piping needs. Our state-of-the-art production plants are strategically located in the Myanmar, allowing us to maintain a vast inventory of over 16,000 tons of premium-quality materials readily available in stock. We are dedicated to delivering superior products and services, ensuring reliability and excellence for our global clientele.
Contact us to get a quick quote for your requirement.
The true value of Incoloy 825 forgings is realized in some of industry’s most challenging settings. They are indispensable in chemical processing for handling acids, in pollution control systems for scrubbing corrosive gases, and in oil and gas recovery where they confront sour, corrosive well fluids. You’ll also find these robust components in marine engineering, nuclear fuel reprocessing, and acid production plants. Essentially, wherever severe corrosion and high temperatures are a concern, these forgings provide the long-lasting, reliable performance that keeps critical systems running safely and efficiently.
