Nestled in the heart of Naypyidaw, Wai Nickel Alloys stands as a dedicated manufacturer and supplier of high-performance components, built on a foundation of precision and reliability. We specialize in crafting Incoloy 800, 800H, and 800HT bolts, providing our clients with critical fastening solutions that are engineered to excel under the most demanding thermal and corrosive conditions. Our commitment is to deliver not just a product, but a promise of enduring strength and stability for the most challenging industrial applications.
The exceptional performance of these bolts stems from their unique composition, a robust nickel-iron-chromium alloy enhanced with titanium and aluminum. This formulation grants them outstanding resistance to oxidation and carburization. Mechanically, they are defined by impressive tensile strength and remarkable creep-rupture properties, especially in the 800H and 800HT grades, which are thermally treated to maintain their integrity and resist deformation even when exposed to sustained high temperatures.
|
Alloy 800/800H/800HT Bolt Specifications |
||
| Specifications | : | ASTM B 408 ASME SB 408 |
| Standard | : | DIN, ASTM, BS and all International Standards |
| Length | : | 3 mm to 200 mm |
| Size | : | M3 – M56 | 3/6″ to 2″ | Custom Sizes |

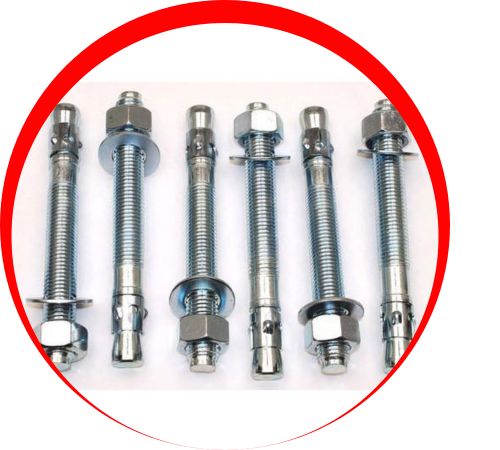

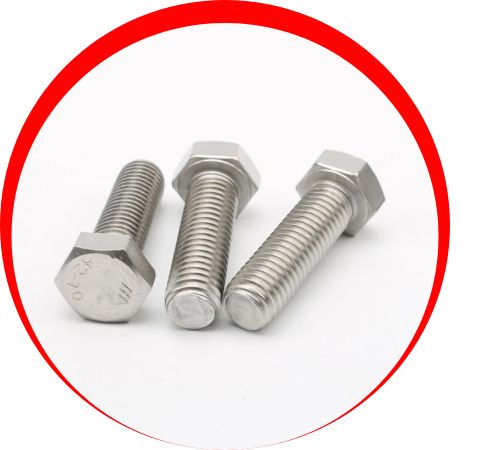

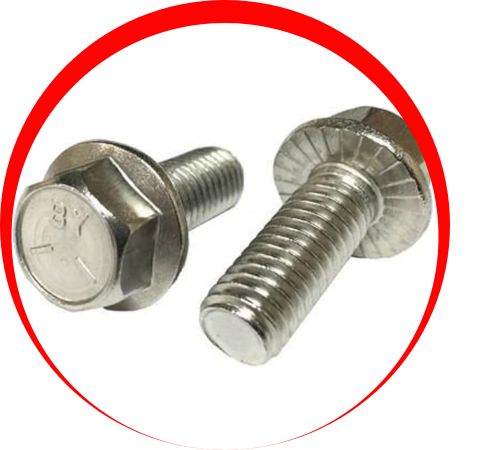

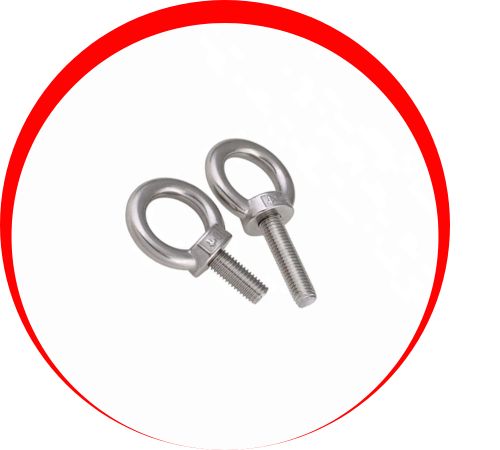

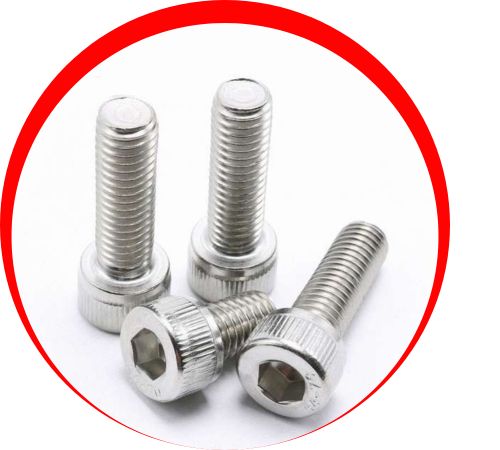

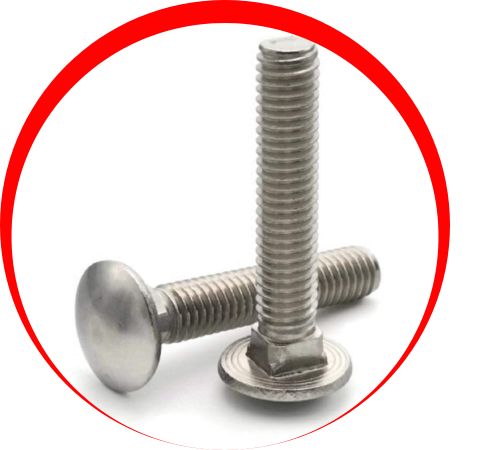

| Type | : | Hex Head Bolts, Square Bolts, U bolts, Eye bolts, T bolt, Hex Bolt, Lag Bolts, Counter sunk Bolts. |
| Grade | C | Mn | Si | Fe | S | Cr | Al-Ti | Ni | |
| 800 | min. | – | – | – | 39.5 | – | 19.0 | 0.15 | 30.0 |
| max. | 0.1 | 1.5 | 1.0 | – | 0.015 | 23.0 | 0.60 | 35.0 | |
| 800H | min. | 0.05 | – | – | 39.5 | – | 19.0 | 0.15 | 30.0 |
| max. | 0.1 | 1.5 | 1.0 | – | 0.015 | 23.0 | 0.60 | 35.0 | |
| 800HT | min. | 0.06 | – | – | 39.5 | – | 19.0 | 0.85/0.25 | 30.0 |
| max. | 0.1 | 1.5 | 1.0 | – | 0.015 | 23.0 | 1.20/0.60 | 35.0 | |
| Grade | Tensile Strength (MPa) min | Yield Strength 0.2% Proof (MPa) min | Elongation (% in 50mm) min | Hardness | |
| Rockwell B (HR B) max | Brinell (HB) max | ||||
| 800-H-HT | Psi – 75,000 , MPa – 520 | Psi – 30,000 , MPa –205 | 30 | – | – |
The **Incoloy 800/800H/800HT Bolts** are made from a blend of nickel, iron, and chromium, with added aluminum, titanium, and carbon. The 800H and 800HT versions feature higher carbon content and optimized aluminum-titanium levels to boost creep and rupture strength at elevated temperatures. These bolts showcase exceptional tensile strength, hardness, and corrosion resistance, ensuring they keep their structural integrity even when exposed to prolonged heat and mechanical stress.
Contact us to get a quick quote for your requirement.
These specialized bolts are indispensable in sectors where failure is not an option. You will find them securely fastening components in high-temperature industrial furnaces, petrochemical processing units, and power generation systems, particularly in nuclear and conventional power plants. Their reliability also makes them a preferred choice for heat-treating equipment and in the chemical processing industry, where they ensure the safe and continuous operation of critical infrastructure by withstanding both extreme heat and corrosive environments.
