Wai Nickel Alloys, a premier manufacturer and supplier based in Naypyidaw, Myanmar, offers high-quality Titanium Grade 2 Tube Fittings designed to meet the demanding needs of various industries. Known for their exceptional corrosion resistance and excellent strength-to-weight ratio, these fittings are ideal for applications in chemical processing, marine environments, and aerospace sectors. Engineered with precision, Wai Nickel Alloys’ Titanium Grade 2 Tube Fittings ensure reliable performance and longevity, making them the preferred choice for critical applications worldwide.
Wai Nickel Alloys, located in Naypyidaw, Myanmar, has built a solid reputation as a reliable manufacturer and supplier of top-notch **Titanium Grade 2 Tube Fittings**. These fittings are celebrated for their remarkable strength, resistance to corrosion, and impressive durability. They’re crafted to perform reliably even in tough conditions, showcasing excellent resistance to both oxidizing and mildly reducing environments. Thanks to cutting-edge manufacturing techniques and rigorous quality control, Wai Nickel Alloys guarantees precise dimensions and a long lifespan for their products. Their Titanium Grade 2 Tube Fittings are perfect for industries that need lightweight, corrosion-resistant materials, such as chemical processing, aerospace, and marine applications.
| Specifications | ASTM B366 / ASME SB366 |
|---|---|
| Size | 1/16 in. to 2 in. & 2mm to 50 mm. |
| Dimensional Range | 1/16 to 2 inches (imperial); 2 to 50 mm (metric) |
| Working Pressures | Upto 2000 to 6000 PSI |
| Thread Type | NPT – ASME B1.20.1, SAE AS71051 | ISO/BSP Parallel – ISO 228 | ISO/BSP Tapered – ISO 7, BS EN 10226-1 | SAE (Unified) – ASME B1.1 |
| End Connections | NPT, ISO/BP, SAE/MS, AN, weld ends, port connectors, sanitary flanges, tube adapters |

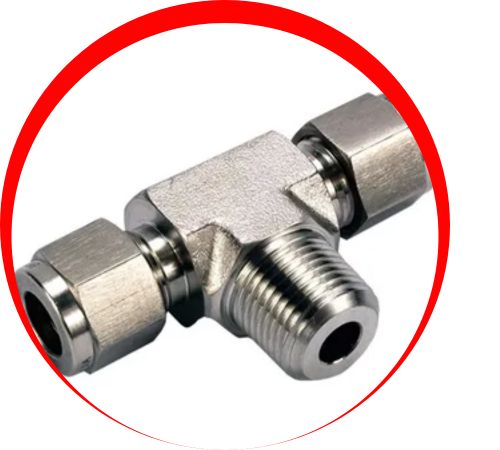

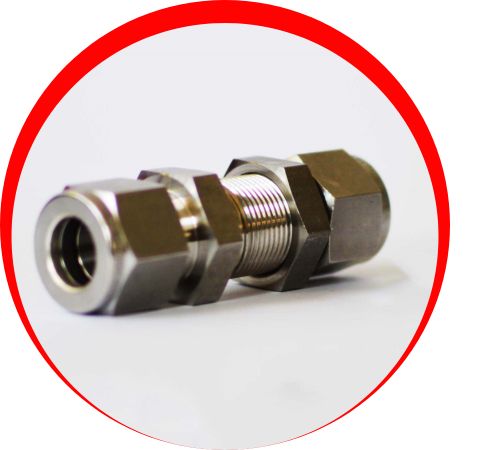

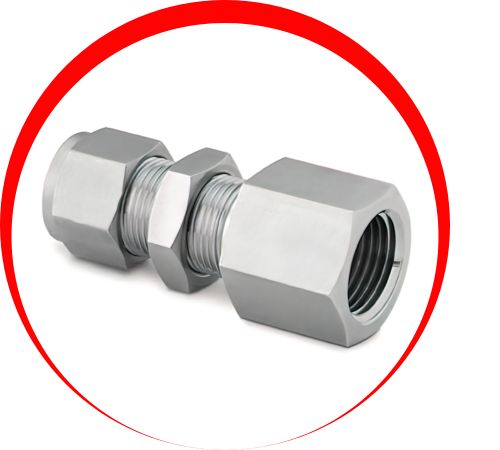

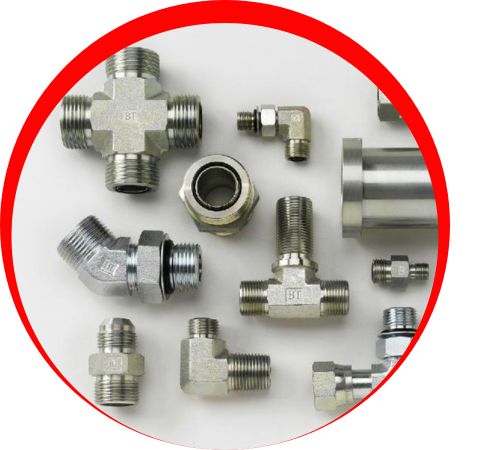

| Types | Tube to Union, Tube to Male, Tube to Female, Instrument Pipe Fittings, Accessories |
| Max Working Pressure | 8MPa | 1200psi Depending on The Tubing Material |
| Working Temperature | -40°C—250°C | -40°F—482°F Depending on The Tubing Material |
| Configurations | Straights, elbows, tees, crosses, caps, plugs, nuts and ferrules Chromatograph and Column End |
| Tube Fitting uses & application |
| Grade | Ti | C | Fe | H | N | O | Al | V |
| Ti Grade2 | 99.2 min | 0.1 max | 0.3 max | 0.015 max | 0.03 max | 0.25 max | – | – |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Titanium Gr. 2 | 4.5 g/cm3 | 1665 °C (3030 °F) | Psi – 49900 , MPa – 344 | Psi – 39900 , MPa – 275 | 20 % |
These fittings are primarily made from commercially pure titanium, which is about 99.2% titanium, along with trace amounts of iron, oxygen, carbon, nitrogen, and hydrogen. This unique blend results in a fantastic mix of moderate strength, ductility, and outstanding corrosion resistance. In terms of mechanical properties, these fittings boast a tensile strength of around 345 MPa, a yield strength of 275 MPa, and an elongation of 20%. The material’s excellent formability, weldability, and toughness make it a great choice for various temperature and pressure conditions.
Contact us to get a quick quote for your requirement.
Titanium Grade 2 Tube Fittings are widely utilized in sectors that require lightweight materials with high corrosion and chemical resistance. They find extensive use in chemical processing, desalination plants, marine engineering, and aerospace systems for transporting corrosive fluids and gases. Moreover, these fittings are also suitable for heat exchangers, condensers, and medical devices due to their biocompatibility and non-toxic nature. Their reliability, impressive pressure-handling capabilities, and durability make them a go-to option in both industrial and commercial settings where strength and resistance to corrosion are crucial.
