Wai Nickel Alloys stands out as a top-notch manufacturer and supplier located in Naypyidaw, Myanmar. They specialize in high-performance Titanium Gr 5 Forged Fittings, which are celebrated for their exceptional strength, corrosion resistance, and durability. The company leverages cutting-edge manufacturing technology and rigorous quality control processes to create fittings that not only meet international standards but also satisfy the demanding needs of various industries. With a diverse range of sizes and specifications, Wai Nickel Alloys’ Titanium Gr 5 Forged Fittings ensure precise performance and reliability, making them a trusted choice for industries that require long-lasting, high-quality titanium components for critical applications.
These fittings are primarily made up of titanium (90%), aluminum (6%), and vanadium (4%), resulting in a fantastic blend of strength, toughness, and corrosion resistance. They boast a tensile strength of about 895 MPa, a yield strength of 828 MPa, and an elastic modulus of roughly 113 GPa. Additionally, they have a low density of 4.43 g/cm³, a melting point of 1660°C, and impressive resistance to oxidation and fatigue, which makes them perfect for high-stress and high-temperature environments.
| Specifications | ASTM B381 / ASME SB381 |
| Standard | ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799 |
| Size | 1/8” NB to 4” NB (Socketweld & Screwed-Threaded) |
| Class | 2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS |
| Type | Socketweld Fittings, Screwed-Threaded Fittings |
| Manufacturing process | Forge, Cast, Push, Press, etc. |
| Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |

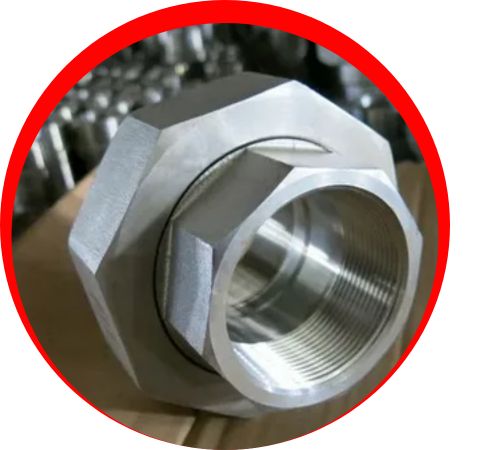

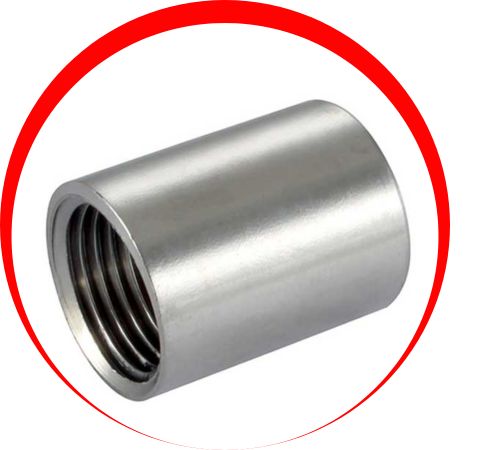

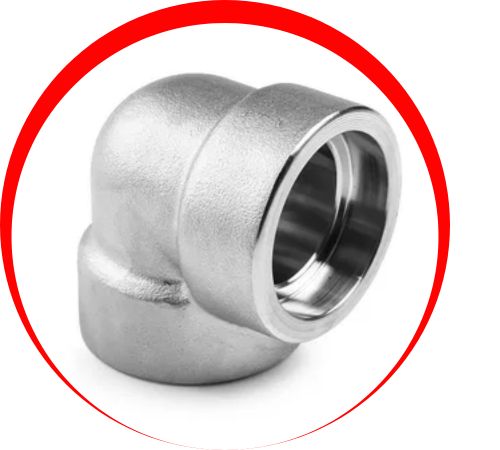

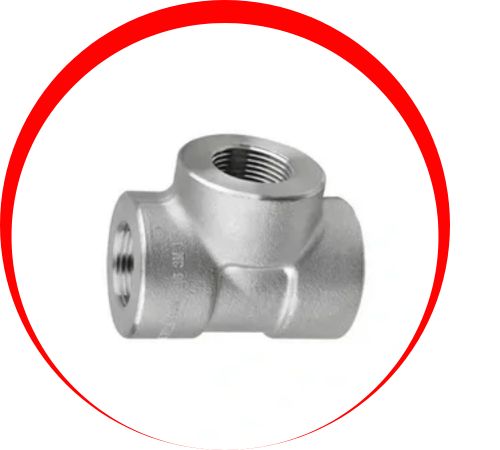

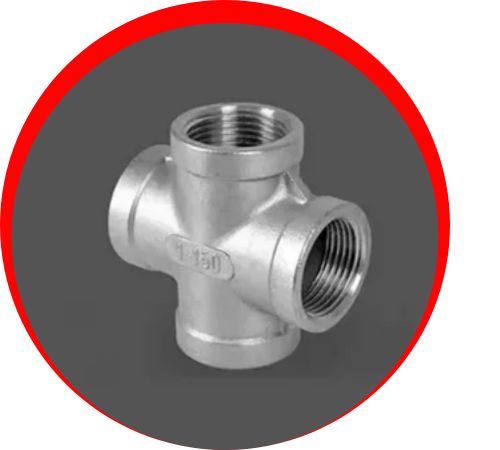

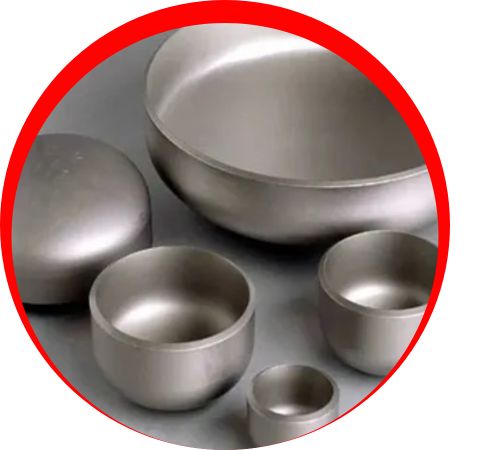

| Specialized manufacturer of | 90 Deg Forged Elbows, 45 Deg Forged Elbow, Tee, Cross, Coupling, End Cap, Union, Bushing, Plug, Barrel Nipple |
| Grade | C | N | O | H | Ti | Fe |
| Ti Gr.5 | 0.10 max | 0.05 max | 0.25 max | 0.015 max | Bal | 0.40 max |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Ti Gr 5 | 4.43 g/cm3 | 1632 °C (2970 °F) | Psi – 138000 , MPa – 950 | Psi – 128000 , MPa – 880 | 14 % |
At Wai Nickel Alloys, we take pride in being the largest supplier, exporter, and manufacturer of Titanium Gr 5 Forged Fittings in Naypyidaw, Myanmar, providing cutting-edge solutions for all your piping needs. Our state-of-the-art production plants are strategically located in the Myanmar, allowing us to maintain a vast inventory of over 16,000 tons of premium-quality materials readily available in stock. We are dedicated to delivering superior products and services, ensuring reliability and excellence for our global clientele.
Contact us to get a quick quote for your requirement.
Titanium Gr 5 Forged Fittings find extensive applications in aerospace, marine, chemical processing, power generation, and oil and gas sectors. In aerospace, they are used in airframes, engine components, and hydraulic systems due to their lightweight and robust nature. The marine industry relies on them for seawater piping systems and offshore platforms, thanks to their outstanding corrosion resistance. In chemical plants, they effectively manage aggressive fluids in heat exchangers and reactors. Moreover, these fittings are also utilized in medical devices and sports equipment, highlighting their versatility and reliability in challenging conditions.
