Wai Nickel Alloys, a leading manufacturer and supplier based in Naypyidaw, Myanmar, specializes in high-quality Titanium Gr 5 Fasteners. Renowned for their exceptional strength, lightweight, and corrosion resistance, these fasteners are ideal for demanding applications across industries such as aerospace, marine, and automotive. At Wai Nickel Alloys, we ensure that our Titanium Gr 5 Fasteners meet the highest standards of precision and durability, making us a trusted partner for clients worldwide.
Wai Nickel Alloys, located in Naypyidaw, Myanmar, is a reputable manufacturer and supplier of **Titanium Grade 5 Fasteners**. These fasteners are celebrated for their remarkable strength, lightweight nature, and outstanding resistance to corrosion. They’re engineered to perform reliably in high-pressure, high-temperature, and corrosive settings. With a commitment to precision, advanced technology, and strict quality control, Wai Nickel Alloys guarantees durability, accuracy, and compliance with international standards. Their Titanium Grade 5 Fasteners are perfect for critical industrial applications where strength, stability, and longevity are a must.
|
Titanium Grade 5 Fasteners Specifications |
ASTM B348/ ASME SB348 |
|
Titanium Grade 5 Fasteners Standard |
DIN, ASTM, BS and all International Standards |
|
Titanium Grade 5 Fasteners Length |
3 mm to 200 mm |
|

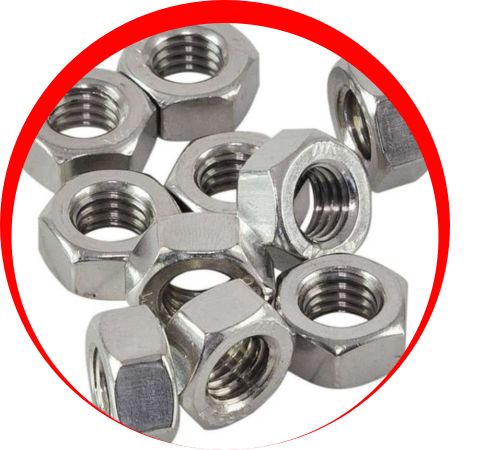

Titanium Grade 5 Nuts Size |
M3 – M56 | 3/6″ to 2″ | Custom Sizes |
|

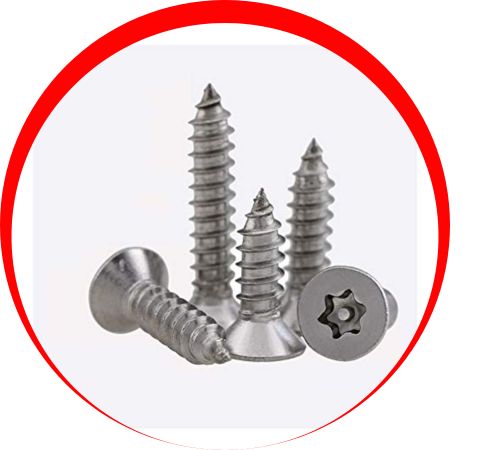

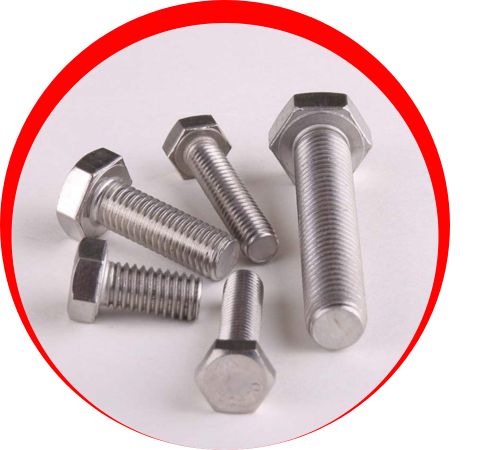

Titanium Grade 5 Bolt / Screw Size |
M3 – M56 | 3/6″ to 2″ | Custom Sizes |
|
Titanium Grade 5 Machine Screws Size |
M1.6 – M12 |
|

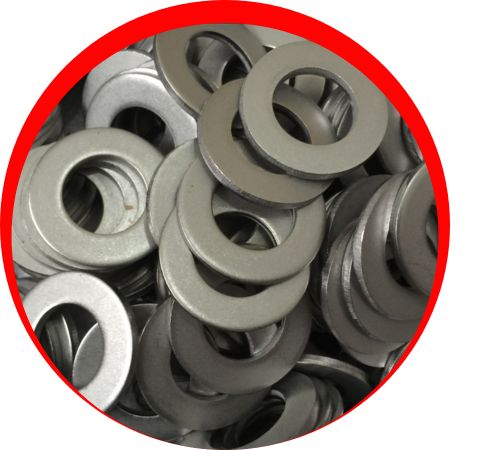

Titanium Grade 5 Washers Size |
M3 – M56 | 3/6″ to 2″ | Custom Sizes |
|
Titanium Fasteners Type |

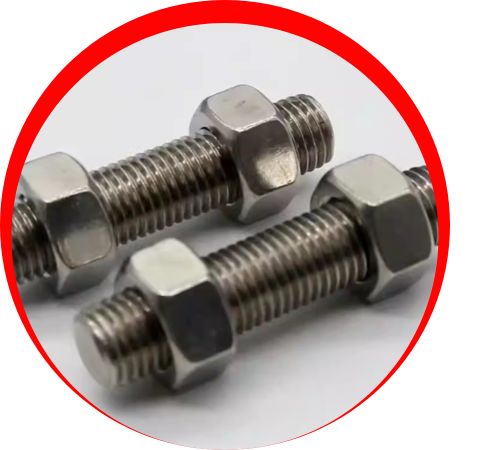

Nut, Hex Coupling Nut, Hex Nut, Square Nut, Hex Domed Cap Nuts, Hex Head Bolts, Stud Bolts, Socket Hexagon Head Screw, Pan Head Screw, Socket Head Cap Screw, Wing Screw, T-Head Bolts, Foundation Bolts,Screw, Studs, Socket Screw, Hex Set Screw, Cap Screw, Machine Screw, Wing Screw, Spring Washers, Washers, Studs, Marine Anchors, Anchors, Hexagon Nut,U- Bolts, Anchor Bolt, Mushroom Head Square Neck Bolts, J Bolts, Eye Bolt,Structural Bolts, Bolts, Nuts, Sockets, Screws, Allen Cap screw |
|
Titanium Gr 5 |
C |
Ti |
N |
Fe |
H |
O |
V |
Al |
|
0.10 max |
90 min |
0.05 max |
0.40 max |
0.015 max |
0.20 max |
3.5-4.5 |
5.5-6.75 max |
|
Density |
Melting Point |
Yield Strength (0.2%Offset) |
Tensile Strength |
Elongation |
|
4.43 g/cm3 |
1632 °C (2970 °F) |
Psi – 128000 , MPa – 880 |
Psi – 138000 , MPa – 950 |
14 % |
**Titanium Grade 5 Fasteners** consist of about 90% titanium, 6% aluminum, and 4% vanadium, creating the well-known Ti-6Al-4V alloy. This unique blend boosts mechanical properties, resulting in a tensile strength of around 895 MPa and a yield strength of 828 MPa, along with excellent fatigue resistance. The alloy also boasts exceptional resistance to oxidation, seawater, and chemical corrosion, ensuring it maintains its structural integrity even at high temperatures. Its impressive strength-to-weight ratio and weldability make it a go-to material for challenging environments.
Contact us to get a quick quote for your requirement.
You’ll find **Titanium Grade 5 Fasteners** used across various industries, including aerospace, marine, chemical processing, and power generation. They’re particularly suited for offshore oil and gas systems, desalination plants, and high-performance automotive and racing components. Additionally, these fasteners are employed in heat exchangers, valves, and medical equipment due to their biocompatibility and non-toxic characteristics. With their superior corrosion resistance and lightweight strength, Titanium Grade 5 Fasteners deliver long-lasting performance and reliability, even in the most extreme industrial and environmental conditions.
