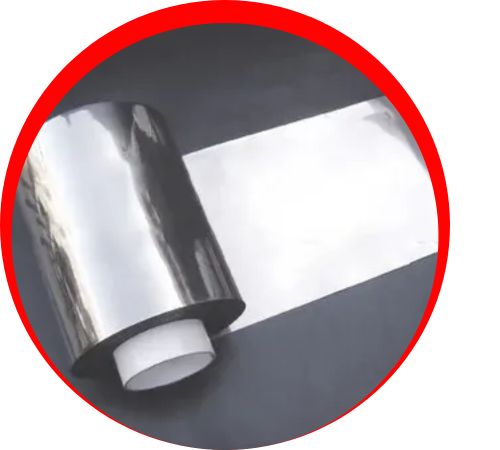

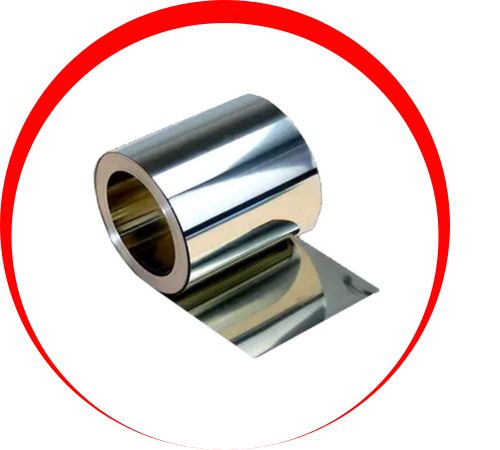

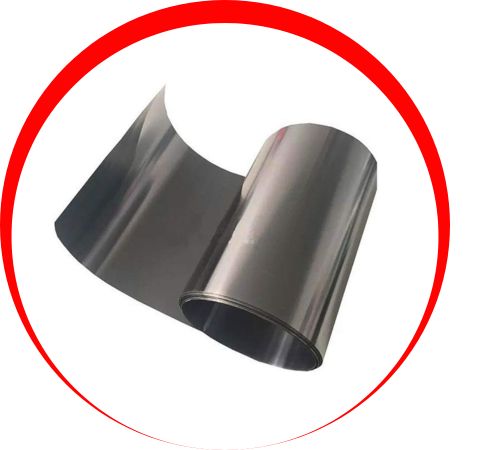

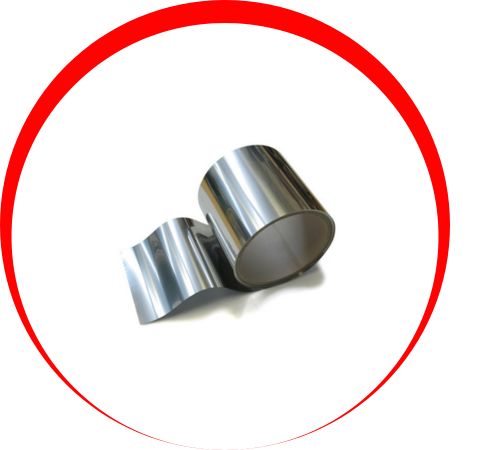

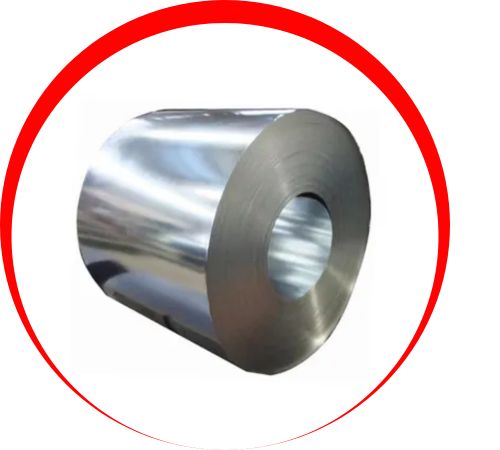

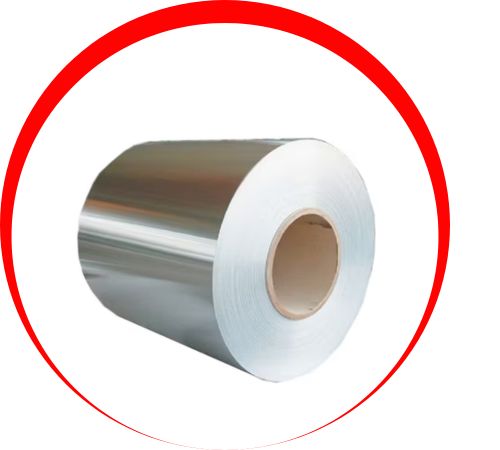

Wai Nickel Alloys, a top-notch manufacturer and supplier located in Naypyidaw, Myanmar, proudly presents its high-quality Rene 41 Foil. This remarkable nickel-based superalloy is crafted for outstanding high-temperature strength, oxidation resistance, and durability. Designed to thrive in extreme heat and stress, it maintains its structural integrity even at temperatures soaring up to 1800°F (982°C). With exceptional creep resistance, fatigue strength, and thermal stability, Rene 41 Foil is the go-to choice for aerospace, turbine, and industrial furnace applications. Manufactured with precision, it guarantees superior performance in demanding environments where reliability and longevity are a must.
Rene 41 Foil is made up of a blend of Nickel (the main component), Chromium (18–20%), Cobalt (10–12%), Molybdenum (9–10.5%), and Titanium (3–3.3%), along with trace amounts of Aluminum, Iron, and Carbon. This unique composition provides impressive tensile strength of around 1000 MPa and yield strength close to 750 MPa, ensuring excellent hardness and oxidation resistance even at high temperatures. The alloy showcases remarkable creep and fatigue resistance, along with excellent thermal stability and oxidation protection in extreme heat environments. These qualities make Rene 41 Foil a dependable choice for critical aerospace and industrial components that face intense heat and stress.
| Standard Specification : | AMS 5545, AMS 5712, AMS 5713, AMS 5800, EN 2.4973, GE B50T59, GE B50TF109, GE B50TF76, UNS N07041, Werkstoff 2.4973 |
| Dimensions : | AMS |
| Sheets Thickness : | Range from .008″ to .0125″ |
| Plates Thickness : | Ranges from .0125″ to 5.00″ |
| Sheets/Plates Width : | 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc |
| Sheets/Plates Length : | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc |
| Tempers : | Annealed, 1/4, 1/2 Hard, 3/4 Hard, Full Hard |
| Hardness : | Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc. |
| Value Added Service : | Cladding, Heat Treatment, Annealed, Pickling, Polish, Rolling, Cutting, Bending, Forging, Minor Fabrication Etc. |
| Mechanical & Physical Properties | 21°C | 427°C | 538°C | 649°C | 760°C | 871°C | 982°C |
|---|---|---|---|---|---|---|---|
| Ultimate Tensile Strength /MPa | 1261.7 | – | – | 1117 | 1048 | 710.2 | – |
| 0.2% Yield Strength /MPa | 820.5 | – | – | 765.3 | 751.5 | 579.2 | – |
| Elongation % | 21 | – | – | 14 | 14 | 11 | – |
| Coefficient of Thermal Expansion µm/m⁰C | – | 13.3 | 13.7 | 14.3 | 15.1 | 15.5 | 16.7 |
| Thermal Conductivity /kcal/(hr.m.°C) | – | 14.4 | 16.1 | 17.9 | 19.6 | 21.4 | – |
| Modulus of Elasticity / x105 MPa | – | 2 | 1.93 | 1.79 | 1.72 | 1.65 | 1.52 |
| Cr | Ni | Mo | Co | Al | Ti | B | C | Fe | Mn | Si | S | Cu | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MIN | 18.00 | — | 9.00 | 10.00 | 1.40 | 3.00 | 0.003 | — | — | — | — | — | — |
| MAX | 20.00 | Balance | 10.50 | 12.00 | 1.80 | 3.30 | 0.01 | 0.12 | 5.00 | 0.10 | 0.50 | 0.015 | 0.50 |
At Wai Nickel Alloys, we take pride in being the largest supplier, exporter, and manufacturer of Nimonic Sheet and Plates in Naypyidaw, Myanmar, providing cutting-edge solutions for all your piping needs. Our state-of-the-art production plants are strategically located in the Myanmar, allowing us to maintain a vast inventory of over 16,000 tons of premium-quality materials readily available in stock. We are dedicated to delivering superior products and services, ensuring reliability and excellence for our global clientele.
Contact us to get a quick quote for your requirement.
| Grade | UNS | Workstoff | AMS | GE |
| Rene 41 | N07041 | 2.4973 | AMS 5545, AMS 5712, AMS 5713, AMS 5800 | GE B50TF109, GE B50TF76 |
Rene 41 Foil finds its place in various high-performance industries where heat resistance and strength are crucial. In aerospace, it’s utilized for jet engine components, turbine blades, and combustion chambers. The power generation sector relies on it for gas turbines and heat-resistant linings. In industrial furnaces and thermal processing equipment, it acts as insulation layers and protective heat shields. Additionally, Rene 41 Foil is employed in automotive, defense, and chemical industries for applications that demand resistance to oxidation, stress, and creep.
