Wai Nickel Alloys, a trusted manufacturer and supplier located in Naypyidaw, Myanmar, specializes in top-quality Niobium Bars that are celebrated for their remarkable strength, resistance to corrosion, and stability at high temperatures. Crafted with precision, these bars showcase excellent ductility and thermal conductivity, making them perfect for cutting-edge industrial and research uses. Niobium Bars are highly sought after for applications in superconducting materials, aerospace parts, and electronic systems. With a strong focus on quality and innovation, Wai Nickel Alloys guarantees that each Niobium Bar adheres to international standards for purity, performance, and consistency, providing dependable solutions for challenging engineering and high-tech needs.
Niobium Bars are primarily made up of Niobium (Nb 99.9%), with small amounts of Tantalum, Titanium, and Tungsten added to boost their performance. They have a density of 8.57 g/cm³, a melting point of about 2477°C, and a tensile strength ranging from 275 to 550 MPa. This material is known for its outstanding ductility, resistance to oxidation, and thermal conductivity, maintaining its mechanical properties even at high temperatures. Niobium’s superconducting characteristics and its ability to create stable oxides make it an excellent choice for electrical and high-temperature applications where strength and corrosion resistance are essential.
| Standards : | ASTM B392, ASME SB392 |
| Dimensions : | EN, DIN, JIS, ASTM, BS, ASME, AISI |
| Wire : | Thickness starting from 0.05mm |

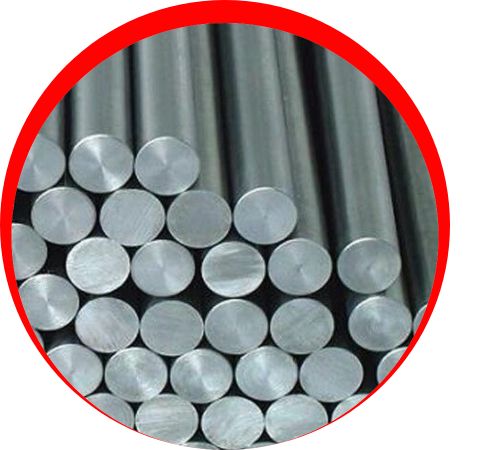

| Round bar size : | Diameter: 3-~800mm |

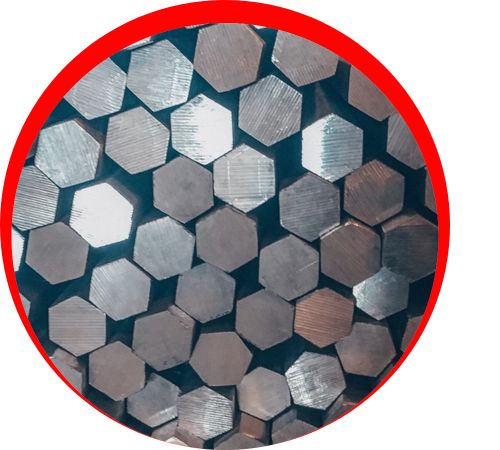

| Hex Bar size : | 2-100mm A/F |

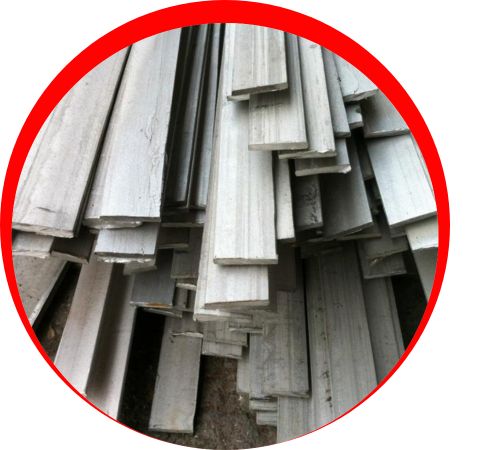

| Flat bar size : | Thickness: 2 -100mm / Width: 10 to 500mm |

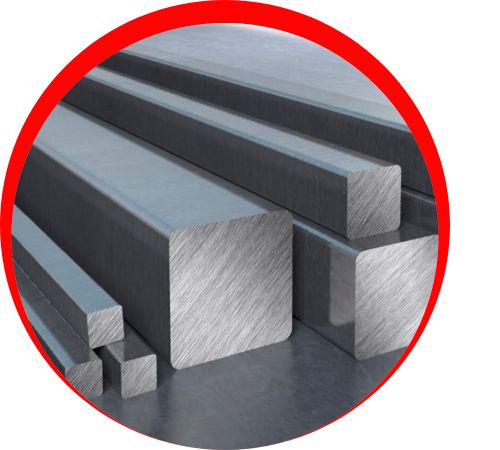

| Square bar size : | 4 to 100mm |
| Rectangular Bars Size : | 33 x 30mm to 295 x 1066mm |
| Hollow Bar : | 32mm OD x 16mm ID to 250mm OD x 200mm ID |
| Tolerance : | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |
| Finish : | Black, Bright Polished, Rough Turned, NO.4 Finish, Matt Finish, BA Finish |
| Element | Niobium R04200 | Niobium R04210 | Nb-1%Zirconium R04251 | Nb-1%Zirconium R04261 |
| C | 0.01 | 0.01 | 0.01 | 0.01 |
| N | 0.01 | 0.01 | 0.01 | 0.01 |
| O | 0.015 | 0.025 | 0.015 | 0.025 |
| H | 0.0015 | 0.0015 | 0.0015 | 0.0015 |
| Zr | 0.02 | 0.02 | 0.8 to 1.2 | 0.8 to 1.2 |
| Ta | 0.1 | 0.3 | 0.1 | 0.5 |
| Fe | 0.005 | 0.01 | 0.005 | 0.01 |
| S | 0.005 | 0.005 | 0.005 | 0.005 |
| W | 0.03 | 0.05 | 0.03 | 0.05 |
| Ni | 0.005 | 0.005 | 0.005 | 0.005 |
| Mo | 0.010 | 0.020 | 0.010 | 0.050 |
| Hf | 0.02 | 0.02 | 0.02 | 0.02 |
| Ti | 0.02 | 0.03 | 0.02 | 0.03 |
| B | 2ppm | – | 2ppm | – |
| Al | 0.002 | 0.005 | 0.002 | 0.005 |
| Be | 0.005 | – | 0.005 | – |
| Cr | 0.002 | – | 0.002 | – |
| C | 0.002 | – | 0.002 |
| Grade | Ultimate Tensile Strength, Min, Psi(MPa) | Yield Strength, Psi(MPa) | Elongation min %,mm |
| Types 1 and 2 | 18 000 (125) | 10 500 (73) | 20 |
| Types 3 and 4 | 28 000 (195) | 18 000 (125) | 15 |
At Wai Nickel Alloys, we take pride in being the largest supplier, exporter, and manufacturer of Niobium Bar in Naypyidaw, Myanmar, providing cutting-edge solutions for all your piping needs. Our state-of-the-art production plants are strategically located in the Myanmar, allowing us to maintain a vast inventory of over 16,000 tons of premium-quality materials readily available in stock. We are dedicated to delivering superior products and services, ensuring reliability and excellence for our global clientele.
Contact us to get a quick quote for your requirement.
Niobium Bars find extensive use in various high-tech industries. In aerospace, they are crucial for components in rocket engines, jet turbines, and heat-resistant alloys. The electronics sector relies on them for capacitors, superconducting magnets, and semiconductor devices due to their excellent conductivity and stability. In the chemical industry, Niobium Bars are key in producing corrosion-resistant equipment and reactor linings. They also play a vital role in medical devices, nuclear reactors, and scientific research, where both purity and performance are critical.
