Wai Nickel Alloys stands out as a leading manufacturer and supplier of Inconel 617 Forged Fittings in Naypyidaw, Myanmar. They specialize in delivering top-notch fittings that are specifically designed to withstand high temperatures and corrosive environments. Crafted from a unique nickel-chromium-cobalt-molybdenum alloy, these fittings boast remarkable resistance to oxidation, carburization, and creep. Wai Nickel Alloys is committed to precision engineering, ensuring high dimensional accuracy and adherence to international quality standards. Their Inconel 617 Forged Fittings are highly regarded in sectors like petrochemical, power generation, and aerospace, where durability, mechanical strength, and performance in extreme conditions are absolutely critical.
The Inconel 617 Forged Fittings are primarily made up of nickel (44.5–55%), chromium (20–24%), cobalt (10–15%), and molybdenum (8–10%), with small amounts of aluminum and titanium added for improved stability. These fittings exhibit impressive mechanical properties, featuring a tensile strength of about 850 MPa and a yield strength of roughly 350 MPa. They maintain outstanding oxidation and corrosion resistance even at temperatures reaching 1000°C, providing exceptional toughness, creep resistance, and long-lasting structural integrity in high-stress situations.
| Standards | ASTM B564/ ASME SB564 |
| Dimensions | ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799 |
| Size | 1/8” NB to 4” NB (Socketweld & Screwed-Threaded) |
| Class | 2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS |

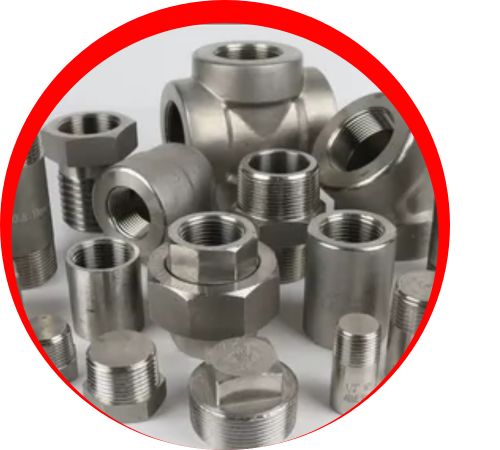

| Type | Socketweld Fittings, Screwed-Threaded Fittings |
| Forged Fittings Thread | NPT, BSPT, BSPP |
| Forged Fittings Test Certificates |
|

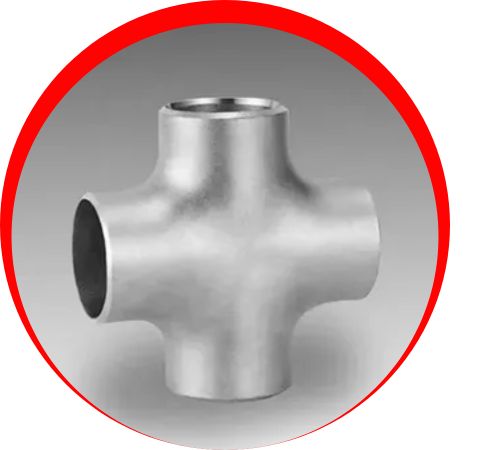

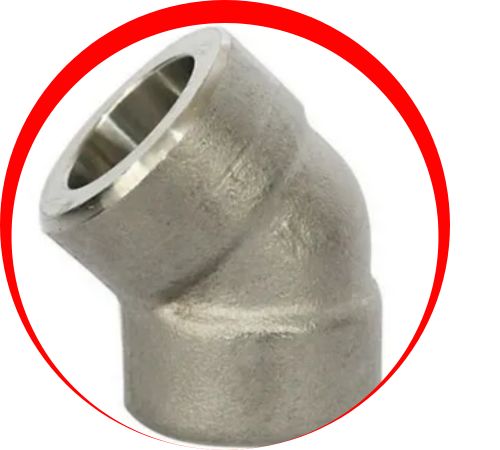

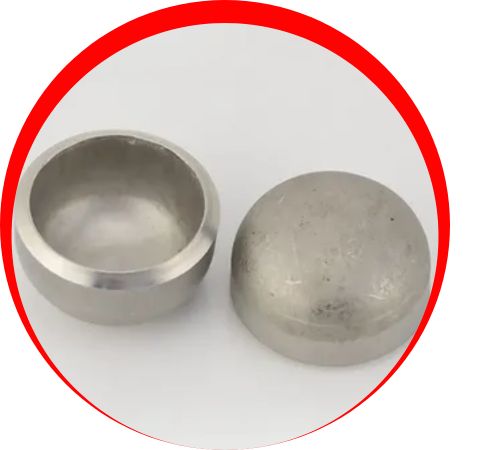

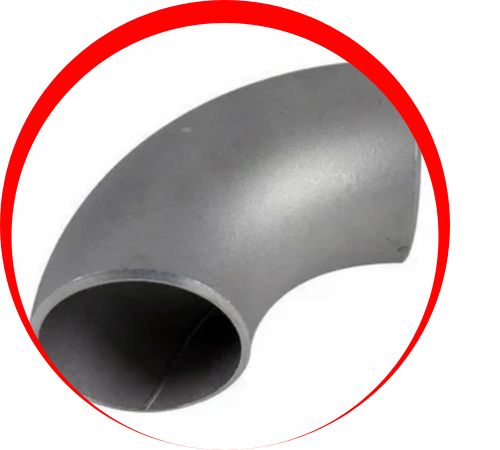

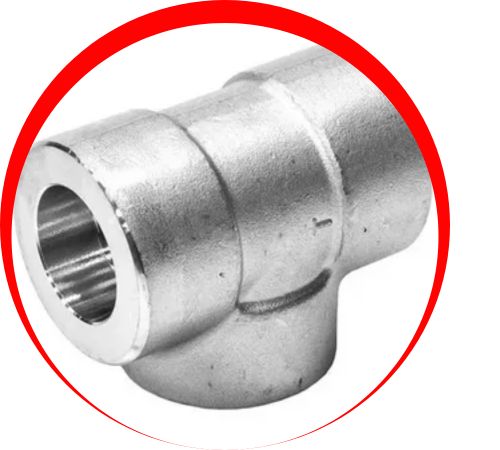

| Specialized manufacturer of | 90º Elbows, 45º Elbows, Tees, Cross, Couplings, Reducers, Inserts, Caps, Nipples, and Unions, Forged Pipe Fittings, Socket Weld & Threaded, Equal Tees & Reducing Tees, 90° & 45° Elbows, Plugs |
| C | Mn | S | Si | Cr | Mo | Ni | Cu | Ti | Al | B | Co | Fe |
| 0.05-0.15 | 1.0 Max | 0.015 Max | 1.0 Max | 20.0-24.0 | 8.0-10.0 | 44.5 Min | 0.5 Max | 0.6 Max | 0.8-1.5 | 0.006 Max | 10.0-15.0 | 3.0 Max |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.1 g/cm3 | 1411 °C (2571 °F) | Psi – 80,000 , MPa – 550 | Psi – 30,000 , MPa – 205 | 30 % |
At Wai Nickel Alloys, we take pride in being the largest supplier, exporter, and manufacturer of Inconel 617 Forged Fittings in Naypyidaw, Myanmar, providing cutting-edge solutions for all your piping needs. Our state-of-the-art production plants are strategically located in the Myanmar, allowing us to maintain a vast inventory of over 16,000 tons of premium-quality materials readily available in stock. We are dedicated to delivering superior products and services, ensuring reliability and excellence for our global clientele.
Contact us to get a quick quote for your requirement.
Inconel 617 Forged Fittings find their place in a variety of applications that require high strength and corrosion resistance in extreme temperature settings. They are perfect for gas turbines, heat exchangers, furnace hardware, and reactor vessels in the petrochemical and power generation industries. In the aerospace sector, these fittings are utilized in engine components that face high thermal stresses. Moreover, they are also employed in chemical processing plants, marine systems, and industrial equipment that operate in oxidizing and carburizing environments, ensuring long-term reliability, safety, and efficiency even in the harshest working conditions.
