Wai Nickel Alloys, a leading manufacturer and supplier based in Naypyidaw, Myanmar, specializes in providing high-quality Monel Forged Fittings. Renowned for their durability and resistance to corrosion, these fittings are essential in industries requiring robust performance under extreme conditions. Our Monel Forged Fittings are meticulously crafted to meet international standards, ensuring reliability and longevity. Trusted by clients across various sectors, Wai Nickel Alloys is your go-to source for premium Monel Forged Fittings in the Myanmar and beyond.
Specifications : ASTM B564 & ASME SB564
Standard : ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799
Size : 1/8” NB to 4” NB (Socketweld & Screwed-Threaded)
Class : 2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS
Type : Socketweld Fittings, Screwed-Threaded Fittings
Grades : Monel 400 (UNS No. N04400), Monel 500 (UNS No. N05500)
| Grade | C | Mn | Si | S | Cu | Fe | Ni |
| Monel 400 | 0.30 max | 2.00 max | 0.50 max | 0.024 max | 28.00 – 34.00 | 2.50 max | 63.00 min |
| Monel K500 | 0.25 max | 1.5 max | 0.5 max | 0.010 max | 27.00 – 33.00 | 0.5 – 2 | 63.00 min |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Monel 400 | 8.8 g/cm3 | 1350 °C (2460 °F) | Psi – 80,000 , MPa – 550 | Psi – 35,000 , MPa – 240 | 40 % |
| Monel K500 | 8.44 g/cm3 | 1350 °C (2460 °F) | Psi – 160000 , MPa – 1100 | Psi – 115000 , MPa – 790 | 20 % |
The **Monel Forged Fittings** are mainly made from nickel and copper, with a touch of iron, manganese, and silicon. This unique blend grants them remarkable resistance to seawater, acids, and alkalis. They boast high tensile strength, impressive ductility, and solid hardness, maintaining their integrity under both high pressure and temperature. Additionally, these fittings are resistant to stress-corrosion cracking and oxidation, making them a trustworthy choice for long-term use in demanding conditions.
Contact us to get a quick quote for your requirement.

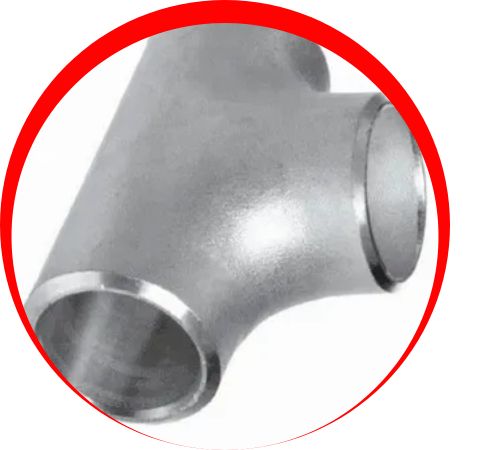

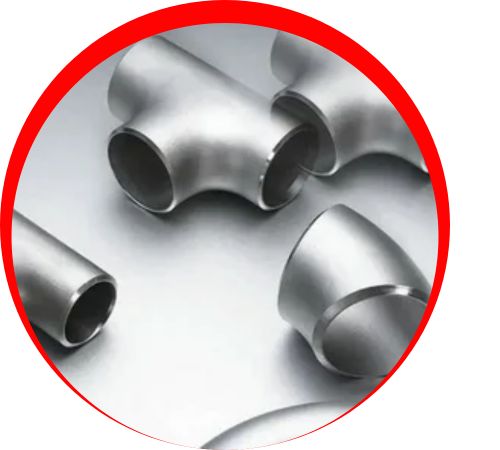

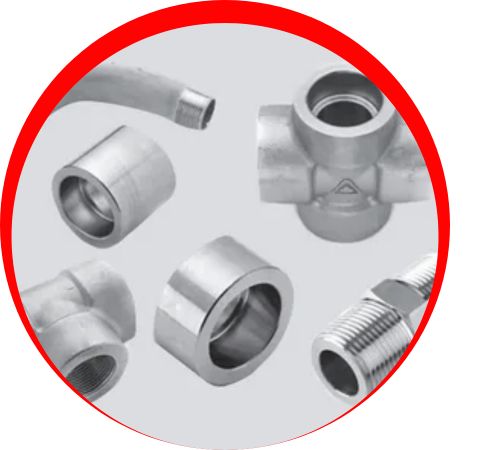

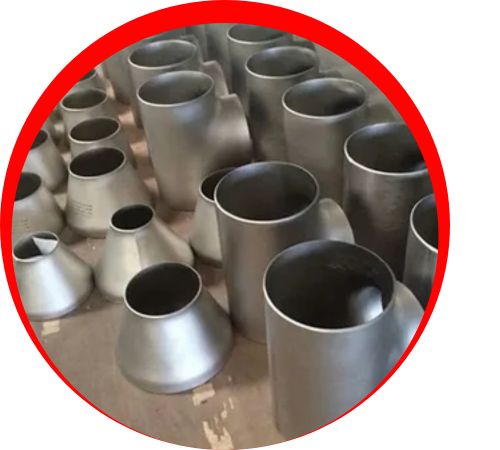

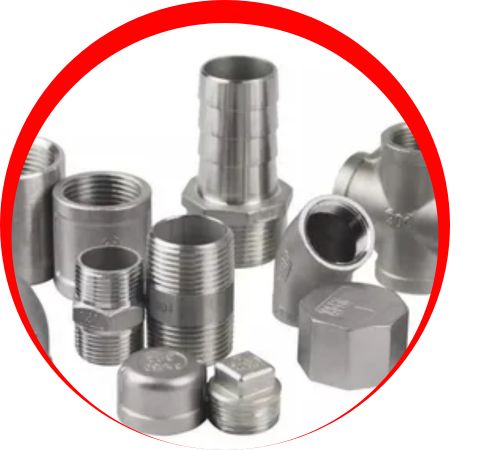

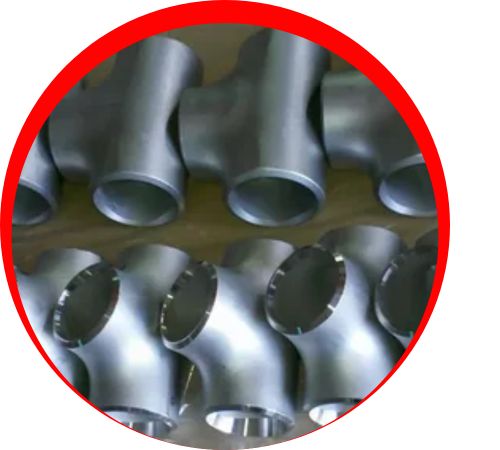

You’ll find **Monel Forged Fittings** commonly used in marine engineering, chemical and hydrocarbon processing, heat exchangers, and oil refining systems. Their ability to withstand corrosion from saltwater and acidic solutions makes them perfect for offshore and desalination projects. Typical types include elbows, tees, couplings, unions, and caps, all designed to ensure secure and efficient fluid handling. These fittings are built to perform reliably in high-stress environments where durability and corrosion resistance are essential.
