Wai Nickel Alloys, based in Naypyidaw, Myanmar, is a leading manufacturer and supplier specializing in high-quality Inconel 625 pipe fittings. Renowned for their exceptional durability and resistance to extreme environments, our Inconel 625 fittings are ideal for demanding applications in industries such as aerospace, marine, and chemical processing. With a commitment to precision and excellence, we ensure that each product meets the highest standards of quality and performance. Choose us for reliable, high-performance solutions tailored to your specific needs.
Wai Nickel Alloys, based in Naypyidaw, Myanmar, is a well-respected manufacturer and supplier of **Inconel 625 Pipe Fittings**. These high-performance fittings are crafted for outstanding durability, strength, and resistance to corrosion. They’re perfect for tough applications in industries like chemical processing, marine, aerospace, and power generation. With a commitment to advanced manufacturing techniques and rigorous quality control, Wai Nickel Alloys guarantees that its Inconel 625 Pipe Fittings provide exceptional performance, precise dimensions, and a long lifespan even in extreme temperatures and pressures.
Standard :ASTM B366 / ASME SB366
Dimensions : ASME/ANSI B16.9, ASME B16.28, MSS-SP-43
Size : 1/8” NB TO 48” NB. (Seamless & 100% X-Ray Welded, Fabricated)
Thickness : Sch 5s, Sch 10s, Sch 40s, Sch 80s, Sch 160s, Sch XXS
Type : Seamless / Welded / Fabricated
Bending Radius : R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom
| Grade | C | Mn | Si | S | Cu | Fe | Ni | Cr |
| 625 | 0.10 max | 0.50 max | 0.50 max | 0.015 max | – | 5.0 max | 58.0 min | 20.0 – 23.0 |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Inconel 625 | 8.4 g/cm3 | 1350 °C (2460 °F) | Psi – 1,35,000 , MPa – 930 | Psi – 75,000 , MPa – 705 | 42.5 % |
The **Inconel 625 Pipe Fittings** are primarily made from nickel and chromium, with notable amounts of molybdenum and niobium added. This special blend boosts their resistance to oxidation, pitting, and crevice corrosion in both oxidizing and reducing environments. The alloy also boasts impressive tensile and yield strength, along with resistance to fatigue and creep, while maintaining toughness and ductility across a broad temperature range. Plus, these fittings are easy to weld without needing post-weld heat treatment.
Contact us to get a quick quote for your requirement.

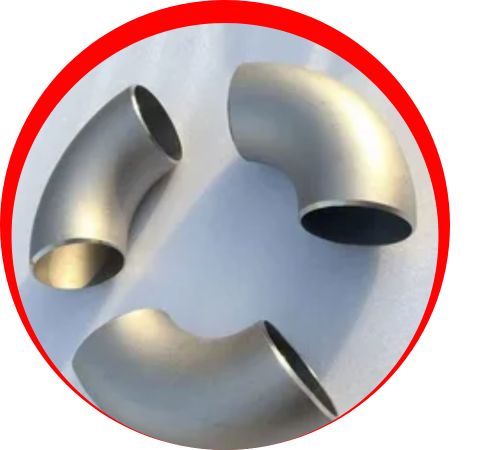

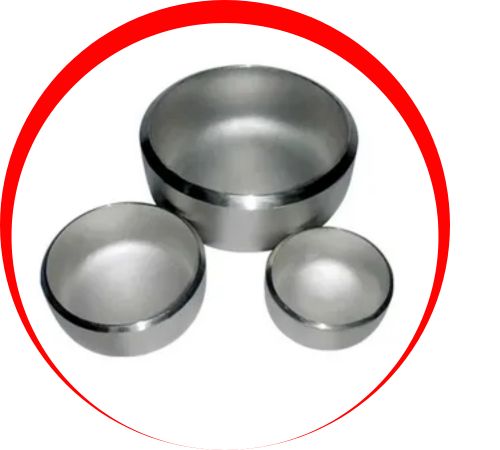

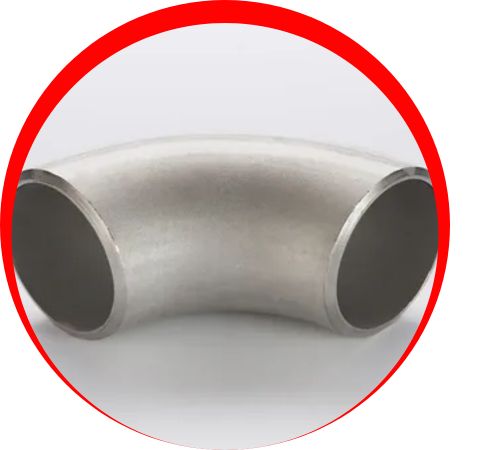

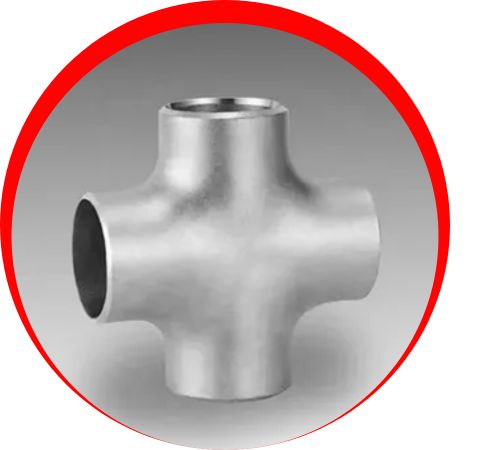

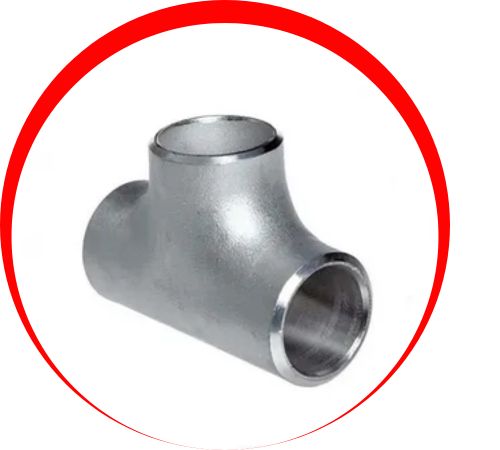

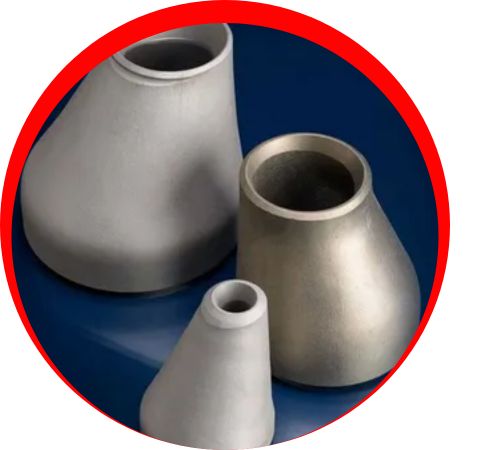

You’ll find **Inconel 625 Pipe Fittings** in various applications, including chemical processing, marine engineering, offshore platforms, heat exchangers, and power plants. Their remarkable resistance to seawater corrosion and chloride-ion attack makes them a top choice for desalination systems and seawater piping. Common types include elbows, tees, reducers, couplings, and caps, all designed to ensure leak-proof and robust connections. These fittings deliver unmatched reliability and performance, even in the harshest industrial and environmental conditions.
