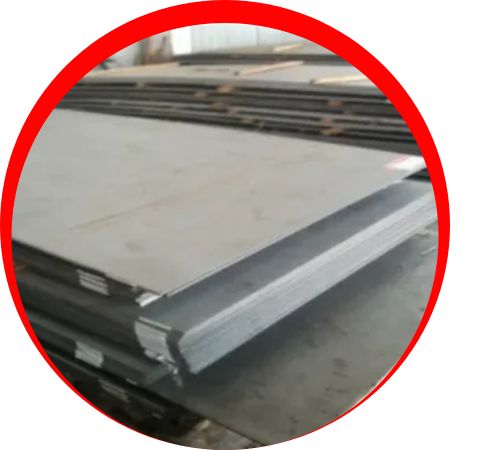

Strategically located in Naypyidaw, Wai Nickel Alloys has established itself as a trusted partner for industries requiring exceptional materials. We take pride in supplying high-quality Duplex Steel 2205 sheets and plates, offering a reliable source for this robust alloy right here in Myanmar. Our commitment is to provide not just a product, but a comprehensive solution backed by technical expertise, ensuring our clients receive materials that meet the most demanding specifications for their critical projects.
The strength of Duplex Steel 2205 comes from its balanced composition, which is essentially a mix of chromium, nickel, molybdenum, and nitrogen. This blend gives it a unique two-phase microstructure, resulting in a material that boasts a remarkable combination of high strength and excellent toughness. It also offers impressive resistance to corrosion, particularly against stress corrosion cracking, making it significantly more durable than many standard stainless steels in challenging environments.
Specifications : ASTM A240 / ASME SA240
Dimensions : ASTM, ASME, and API
Width : 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc
Thickness : 4mm-100mm
Length : 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc
Surface Finish : 2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, chequered, embossed, hairline, sand blast, Brush, etching, Hot rolled plate (HR), Cold rolled sheet (CR), SATIN (Met with Plastic Coated) etc
Hardness : Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc.
Form : Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Perforated Sheet, Chequered Plate, Strip, Flats, Blank (Circle), Ring (Flange) etc.
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | Fe |
| Duplex 2205 | 0.030 max | 2.00 max | 1.00 max | 0.030 max | 0.020 max | 21.0 – 23.0 | 2.50 – 3.50 | 4.50 – 6.50 | 0.8 – 0.20 | 63.54 min |
| Grades | Density (g/cm 3) | Density (lb/in 3) | Melting Point (°C) | Melting Point (°F) |
| 2205 | 7.805 | 0.285 | 1420 – 1465 | 2588 – 2669 |
At Wai Nickel Alloys, we take pride in being the largest supplier, exporter, and manufacturer of Duplex 2205 Sheets and Plates in Naypyidaw, Myanmar, providing cutting-edge solutions for all your piping needs. Our state-of-the-art production plants are strategically located in the Myanmar, allowing us to maintain a vast inventory of over 16,000 tons of premium-quality materials readily available in stock. We are dedicated to delivering superior products and services, ensuring reliability and excellence for our global clientele.
Contact us to get a quick quote for your requirement.
The unique properties of Duplex 2205 make it an ideal choice for a wide range of demanding applications. You will commonly find these sheets and plates in the chemical processing and oil and gas industries, where they are used for everything from pressure vessels to piping systems. They are also extensively used in marine and offshore structures, desalination plants, and even in pulp and paper production, anywhere that requires a material that can withstand both corrosive chemicals and significant structural loads.
