Wai Nickel Alloys is a well-respected manufacturer and supplier located in Naypyidaw, Myanmar, specializing in high-quality Copper Nickel 90/10 Sheets and Plates for a variety of industrial and marine uses. These sheets and plates are celebrated for their outstanding corrosion resistance, strength, and durability, particularly in seawater and brine settings. Utilizing cutting-edge technology and premium raw materials, Wai Nickel Alloys guarantees precise dimensions, an excellent surface finish, and adherence to international standards. The Copper Nickel 90/10 Sheets and Plates are perfect for industries like shipbuilding, desalination, offshore operations, and power generation, where long-lasting and high-performance materials are essential.
Made up of roughly 90% copper and 10% nickel, with minor additions of iron and manganese to boost mechanical strength and corrosion resistance, this alloy boasts impressive mechanical properties. It offers high tensile strength, good ductility, and exceptional resistance to stress corrosion cracking, oxidation, and biofouling. It remains stable and tough even in high-temperature and saline environments. The well-balanced composition ensures excellent formability, weldability, and workability, making these sheets and plates ideal for demanding marine and industrial applications.
Dimensions : ASTM, ASME and API
Standard :ASTM / ASME SB 171, SB 151
Size : 1 mm to 100 mm
Form : Coils, Foils, Rolls, Plain Sheet, Strip, Flats, Blank (Circle), Ring (Flange) etc.

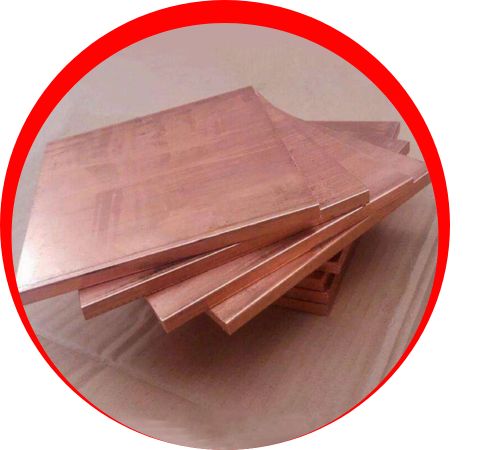

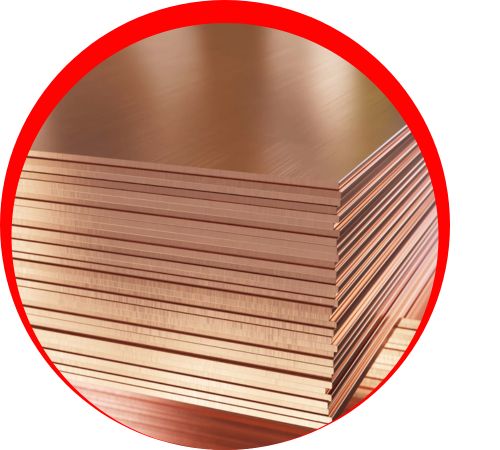

Finish : Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated)
Length : Single Random, Double Random & Cut Length
| Grade | Cu | Mn | Pb | Fe | Zn | Ni |
| Cupro Nickel 90/10 | 88.6 min | 1.0 max | .05 max | 1.8 max | 1 max | 9-11 max |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Cu-Ni 90/10 | 8.1 g/cm3 | 1443 °C (2430 °F) | Psi -80,000, MPa -551 | Psi – 35,000, MPa – 241 | 30 % |
At Wai Nickel Alloys, we take pride in being the largest supplier, exporter, and manufacturer of Copper Nickel 90/10 Sheet and Plates in Naypyidaw, Myanmar, providing cutting-edge solutions for all your piping needs. Our state-of-the-art production plants are strategically located in the Myanmar, allowing us to maintain a vast inventory of over 16,000 tons of premium-quality materials readily available in stock. We are dedicated to delivering superior products and services, ensuring reliability and excellence for our global clientele.
Contact us to get a quick quote for your requirement.
Copper Nickel 90/10 Sheets and Plates find extensive use in seawater cooling systems, condensers, heat exchangers, desalination units, and offshore oil and gas facilities. They are also favored in shipbuilding, power generation, and chemical processing plants due to their superior corrosion resistance and thermal conductivity. These sheets and plates are perfect for constructing piping systems, tanks, and pressure vessels that are exposed to marine conditions. With their remarkable durability, low maintenance needs, and dependable performance, Copper Nickel 90/10 Sheets and Plates are the go-to choice for industries operating in tough and corrosive environments.
