Wai Nickel Alloys stands out as a premier manufacturer and supplier located in Naypyidaw, Myanmar, with a focus on delivering high-quality Copper Nickel 70/30 Pipes for a variety of industrial uses. These pipes are well-known for their remarkable corrosion resistance, mechanical strength, and durability, especially in marine and chemical settings. Crafted with cutting-edge manufacturing techniques and top-notch materials, Wai Nickel Alloys guarantees precision, reliability, and adherence to international quality standards. The Copper Nickel 70/30 Pipes are celebrated for their long-lasting performance, making them perfect for applications in shipbuilding, desalination plants, offshore installations, and power generation systems.
These pipes are made up of about 70% copper and 30% nickel, along with small amounts of iron and manganese that boost their strength and resistance to corrosion and erosion. This alloy showcases impressive mechanical properties, including high tensile strength, good ductility, and exceptional resistance to stress corrosion cracking, oxidation, and biofouling. They maintain stability and performance even in high-temperature and saline conditions, making them ideal for demanding applications in seawater systems and heat exchangers. The well-balanced composition ensures toughness, weldability, and a long service life, even under extreme operating conditions.
| ASTM Specification | ASTM B466/ ASME SB466, ASTM B467/ ASME SB467, ASTM B608 |
|---|---|
| Standard | GB, DTD, ASME, AISI, ASTM, TOCT, JIS, NF, SAE, DIN, AMS, DS, EN |
| Size of Seamless Pipe | Wall thickness.: 0.05- 20 milimeter, 4 – 219 milimeter |
| Size of Welded Pipe | 5.0 to 1219.02 milimeter |
| size of EFW Pipe | 5.0 to 1219.02 milimeter |
| Seamless Tube Size | 3.35 milimeter To 101.6 milimeter OD |
| Welded Tube Size | 6.35 milimeter To 152 milimeter OD |
| Bwg & Swg | 18 Swg., 14 20 Swg., Swg. Swg., 12 16 Swg., 10 Swg. |
| Tubing wall thickness | 0.020″ –0.220″, (custom wall thicknesses available) |
| Pipe Schedule | SCH20, XS, STD, XXS, SCH60, SCH140, SCH80, SCH80, SCH5, SCH40S, SCH40, SCH120, SCH10S, SCH10, SCH30, SCH160 |
| Length | Standard & Cut length , Single Random, Double Random Pipe |

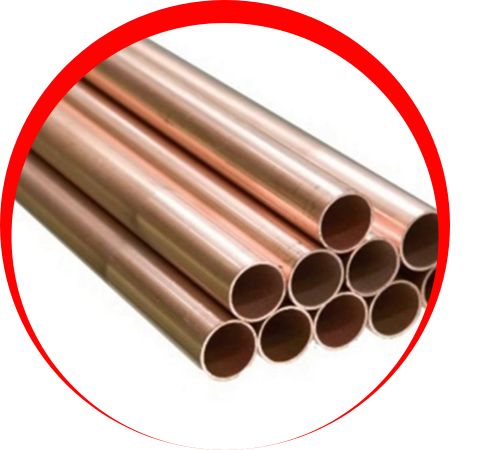

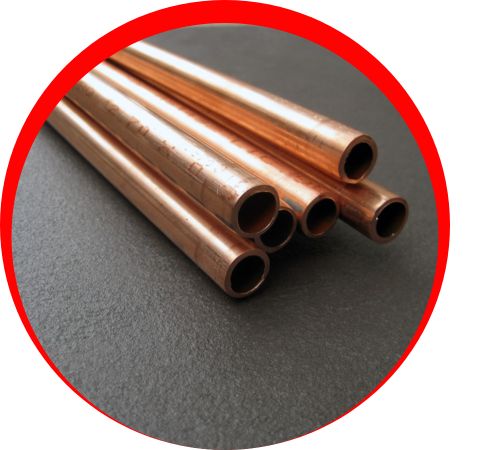

| Finish | AP (Annealed & Pickled), BA (Bright & Annealed), NO.1, 2B, Polished, MF, HL, NO.4, Mirror finish, BA, 8K etc |
| End | Plain End, Beveled End, Treaded Pipe, Screwed ends |

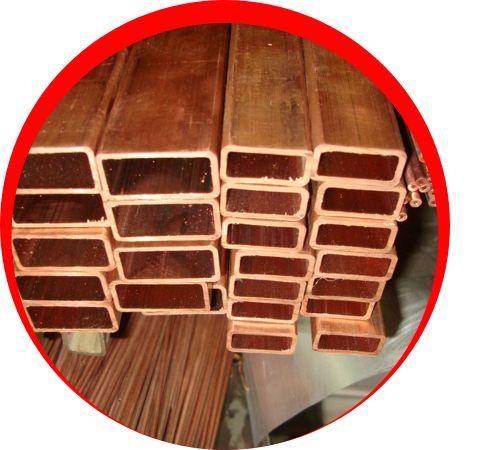

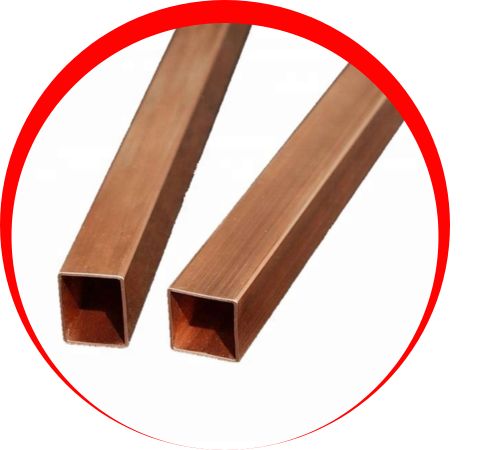

| Form | Hydraulic, Rectangular, Coiled, Square, Hollow, Round, Straight Pipes/tubes, “U” Shape, Pan Cake Coils, Boiler, LSAWetc. |
| Application | Dairy Pipe, Oil Pipe/tube, Gas Pipe/tube, Fluid Pipe/tube, Boiler Tube, Heat exchanger Tube |

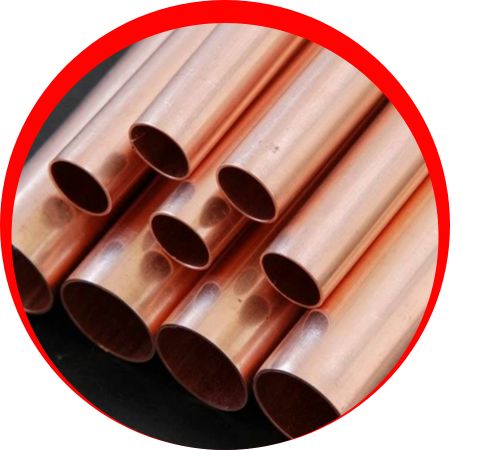

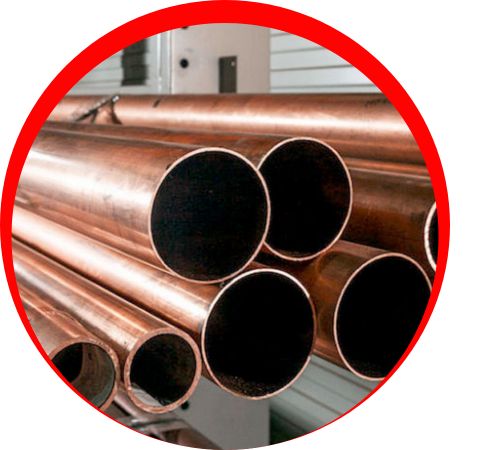

| Type | Seamless /ERW/ EFW / Welded / Fabricated /CDW /DOM/CEW Copper Nickel 70/30 Pipe |
| Cu | Pb | Mn | Fe | Zn | Ni | |
|---|---|---|---|---|---|---|
| MIN | 65.000 | – | – | 0.400 | – | 29.000 |
| MAX | 70.000 | 0.500 | 1.000 | 1.000 | 1.000 | 33.000 |
| Yield Strength 0.2% Proof (MPa) |
Yield Strength 0.2% Proof (MPa) |
Tensile strength (MPa) |
Elongation (% in 50mm) |
Hardness (HRB) |
|---|---|---|---|---|
| MIN | 88 | 372 | 45.00 | |
| MAX | 483 | 517 | 51 |
| Density | kg/dm³ | 8.95 |
|---|---|---|
| Melting Range | °C | 1170-1240 |
| Specific Heat | J/kg °K | 377 |
| Thermal Conductivity | W/m°K | 29 |
| Coeff. of Linear Expansion 10-300°C” | 10-6/°K | 16 |
| Electrical Resistivity | microhm. cm | 34 |
| Modulus of Elasticity | GPa | 152 |
| Modulus of Rigidity | GPa | 56 |
At Wai Nickel Alloys, we take pride in being the largest supplier, exporter, and manufacturer of Copper Nickel 70/30 Pipes in Naypyidaw, Myanmar, providing cutting-edge solutions for all your piping needs. Our state-of-the-art production plants are strategically located in the Myanmar, allowing us to maintain a vast inventory of over 16,000 tons of premium-quality materials readily available in stock. We are dedicated to delivering superior products and services, ensuring reliability and excellence for our global clientele.
Contact us to get a quick quote for your requirement.
Copper Nickel 70/30 Pipes find extensive use in industries where corrosion resistance and reliability are crucial. They are commonly utilized in seawater cooling systems, condensers, heat exchangers, desalination units, and offshore oil and gas platforms. In marine environments, they are favored for shipbuilding, piping systems, and underwater fittings due to their outstanding resistance to seawater and brine. Furthermore, in the power generation and chemical processing sectors, these pipes deliver dependable performance in corrosive and high-pressure situations. Engineers often choose Copper Nickel 70/30 Pipes for their durability and reliability.
